SH2-34G-PT

Headers, Receptacles, Female Sockets Overview

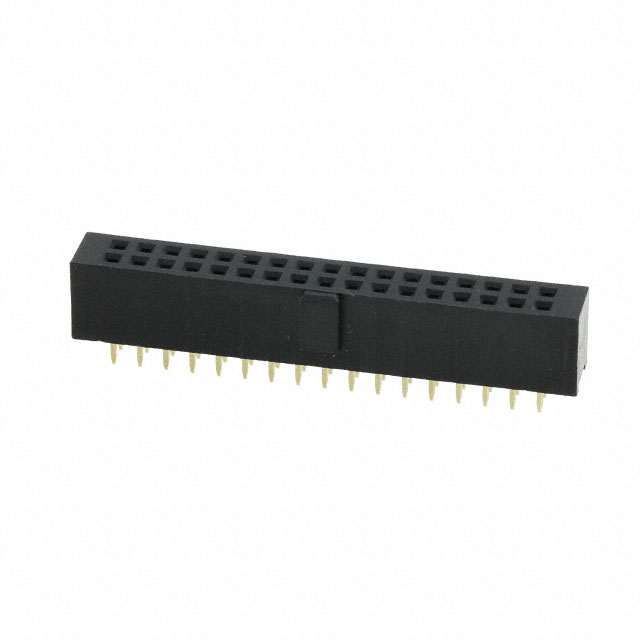

The SH2-34G-PT is a 34-position DIP socket strip receptacle connector manufactured by On Shore Technology Inc. It features a 0.100 inch (2.54mm) pitch and utilizes gold-plated contacts for reliable signal transmission. The component is designed for through-hole mounting on printed circuit boards, offering a straight termination style. Key physical dimensions include an insulation height of 0.331 inches (8.40mm) and a contact post length of 0.130 inches (3.30mm). The housing is black, and the product belongs to the SH series. This connector is suitable for applications requiring robust mechanical stability and consistent electrical performance in industrial environments.

Headers, Receptacles, Female Sockets Feature Summary

• Provides 34 positions for secure connection with compatible header pins
• Utilizes gold plating on contacts to ensure corrosion resistance and low contact resistance
• Designed for surface-mount or through-hole PCB integration with straight orientation

Headers, Receptacles, Female Sockets Applications

• Connection for sbRIO-9683 data acquisition systems
• Industrial control panel interconnections
• General-purpose digital input/output interface modules

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific ordering suffix and packaging configuration against the manufacturer's latest documentation before purchase. Ensure that the required quantity matches the available tray packaging specifications. Confirm compatibility with mating headers regarding pin count and pitch. Check for any recent design changes or obsolescence notices from On Shore Technology Inc. to avoid supply chain disruptions during production.

Headers, Receptacles, Female Sockets Selection Notes

Select this component when a 34-position female connector is required for through-hole assembly. The 2.54mm pitch ensures compatibility with standard DIP headers. Consider the gold contact finish if high reliability or frequent mating cycles are anticipated. Evaluate the straight form factor against board space constraints. Verify that the insulation height and contact length meet the mechanical requirements of the target enclosure or system design.

Headers, Receptacles, Female Sockets Part Context

This part belongs to the SH series of interconnect products from On Shore Technology Inc., a company specializing in computer and industrial interconnect solutions. The SH series typically offers various position counts and contact configurations. As a DIP socket strip, it serves as a critical interface between circuit boards and external wiring or other modules. The product remains active in the manufacturer's portfolio, indicating ongoing availability for new designs.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes must match the 34-position count, 2.54mm pitch, and through-hole mounting style. Verify that alternative connectors offer equivalent gold contact plating and similar insulation height. Ensure the replacement part maintains the same straight termination geometry. Cross-reference with On Shore Technology's official cross-reference lists for approved equivalents.
