SH2-60G-PT

Headers, Receptacles, Female Sockets Overview

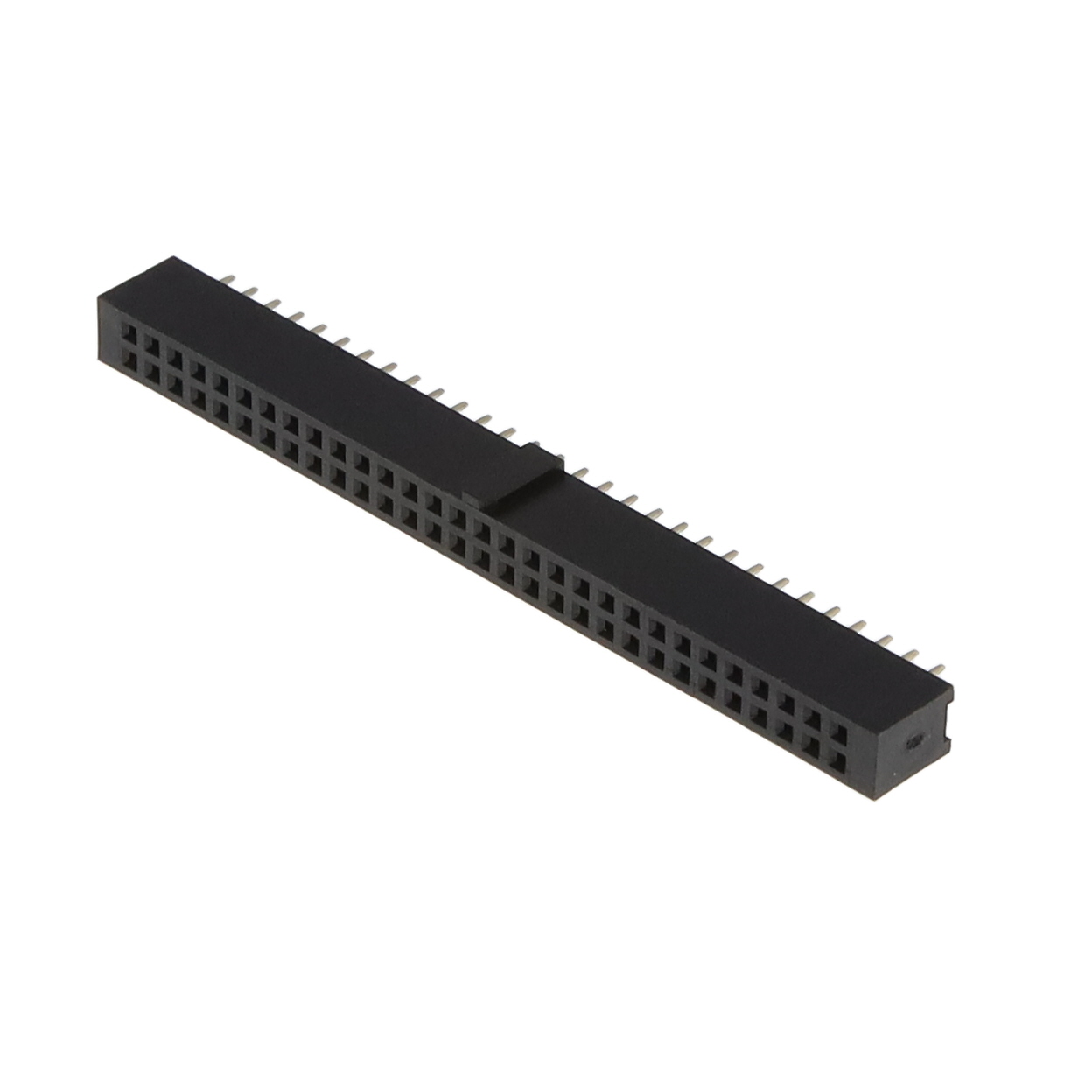

The SH2-60G-PT is a 60-position receptacle connector manufactured by On Shore Technology Inc. It features a 0.100-inch (2.54mm) pitch and utilizes gold-plated contacts for reliable signal transmission. Designed for through-hole mounting, this component supports double-row straight configurations with thick walls to ensure structural integrity. The connector is rated for standard industrial operating temperatures and complies with RoHS3 specifications, making it suitable for high-density PCB applications requiring durable interconnect solutions.

Headers, Receptacles, Female Sockets Feature Summary

• Gold-plated contact surfaces ensure low resistance and corrosion resistance
• Double-row straight configuration facilitates dense board layouts
• Thick wall construction provides enhanced mechanical stability
• Through-hole termination method secures robust PCB attachment

Headers, Receptacles, Female Sockets Applications

• High-density electronic circuit boards
• Industrial control system interconnections
• Computer peripheral device interfaces
• Signal routing in complex PCB assemblies

Headers, Receptacles, Female Sockets Procurement Notes

Verify the specific pin count and pitch alignment against your design requirements before ordering. Confirm that the gold plating thickness meets your conductivity standards. Ensure the through-hole footprint matches your PCB fabrication capabilities. Check for RoHS3 compliance if environmental regulations apply to your project. Validate the operating temperature range against your intended application environment.

Headers, Receptacles, Female Sockets Selection Notes

Select this model when a 60-pin density is required with a 2.54mm spacing. Choose gold contacts over tin for environments prone to oxidation or where frequent mating cycles occur. Consider the straight orientation for vertical stacking or panel mounting needs. Evaluate the mechanical strength provided by thick walls for rugged applications. Compare against single-row alternatives if space constraints allow for reduced pin counts.

Headers, Receptacles, Female Sockets Part Context

This component belongs to the SH2 series of stamped in-line socket strips from On Shore Technology Inc. The series is characterized by its reliability in computer and industrial interconnect applications. The SH2-60G-PT specifically denotes the 60-position variant with gold plating and through-hole termination. It represents a standard solution for connecting cables or backplanes in systems requiring stable electrical performance.

Headers, Receptacles, Female Sockets Replacement Considerations

Direct substitutes may include other 60-position, 2.54mm pitch receptacles from different manufacturers. Verify that alternative parts maintain the same gold plating specification and through-hole compatibility. Ensure the mechanical dimensions, particularly the thick wall design, match your assembly requirements. Cross-reference the current rating and voltage specifications to guarantee equivalent performance.
