SH50C-0.9-267

Fixed Inductors Overview

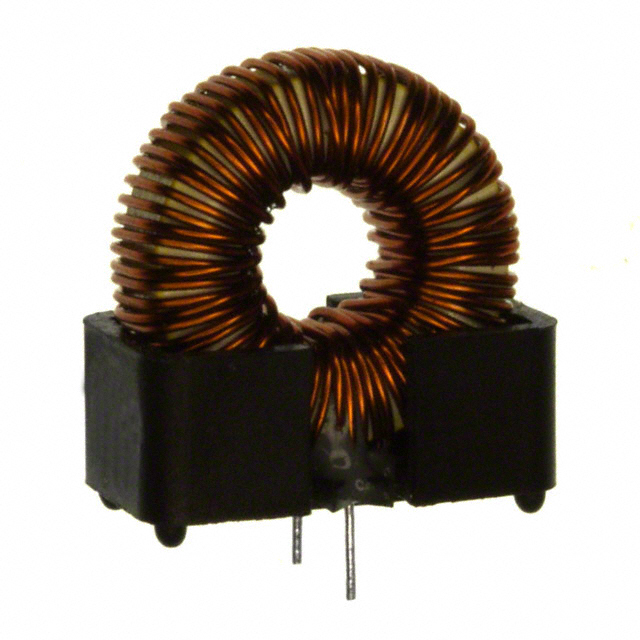

The SH50C-0.9-267 is a fixed inductor from the Amgis SH50 series, featuring a 267 µH nominal inductance with ±20% tolerance. It utilizes an unshielded toroidal core made of iron powder and supports a maximum current rating of 900 mA. The component exhibits a maximum DC resistance (DCR) of 180 mΩ and is designed for surface mount installation in a radial vertical configuration. Operating specifications include a test frequency of 10 kHz and a functional temperature range spanning -40°C to 125°C.

Fixed Inductors Feature Summary

• Unshielded toroidal construction utilizing iron powder magnetic material
• Radial vertical mounting orientation for surface mount applications
• High thermal stability supporting operation up to 125°C

Fixed Inductors Applications

• Switching power supply output filtering
• General-purpose signal processing circuits
• Electronic ballast systems

Fixed Inductors Procurement Notes

Verify that the procurement order specifies the SH50C-0.9-267 part number to ensure correct inductance and physical dimensions. Confirm compatibility with the target PCB footprint, as the radial vertical package requires specific layout considerations. Ensure the application environment remains within the specified -40°C to 125°C operating range to maintain performance integrity.

Fixed Inductors Selection Notes

Select this component when a 267 µH inductance value is required with a 900 mA current capacity. The unshielded design necessitates adequate spacing on the PCB to prevent magnetic interference with adjacent components. Verify that the 180 mΩ DCR meets the efficiency requirements of the circuit design.

Fixed Inductors Part Context

This component belongs to the SH50 series of fixed inductors manufactured by Amgis, LLC. The series offers various inductance values tailored for different current ratings while maintaining consistent physical form factors. The SH50C-0.9-267 specifically addresses applications requiring moderate inductance with high current handling capabilities in a compact surface mount package.

Fixed Inductors Replacement Considerations

Cross-reference with other SH50 series variants if different inductance or current ratings are needed. Verify mechanical compatibility before substituting with generic toroidal inductors, as the radial vertical package geometry is specific to this series.
