SHBC14-1R2A0187V

Fixed Inductors Overview

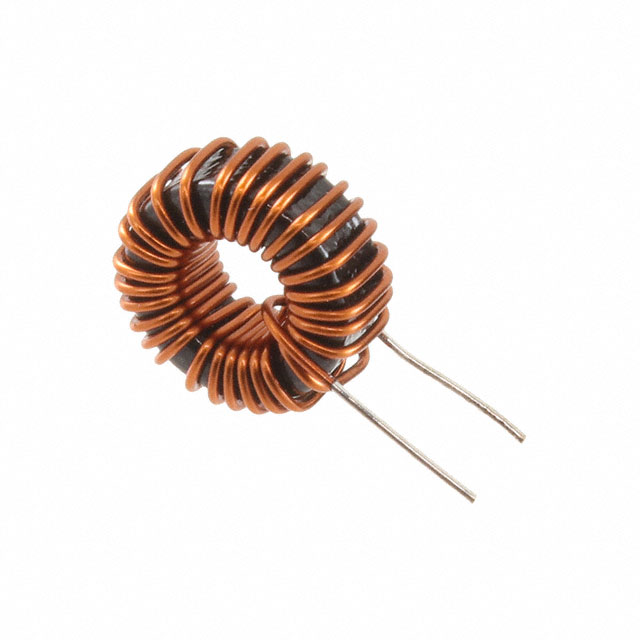

The KEMET SHBC14-1R2A0187V is a through-hole common mode choke from the SHBC series. It features an inductance of 113.5 µH with a tolerance of 20%. The component supports a maximum RMS current of 8 A and has a maximum DC resistance of 0.0376 Ω. It operates within a temperature range of -40 °C to +125 °C.

Fixed Inductors Feature Summary

• Provides effective common mode noise suppression for differential signal lines
• Utilizes a toroidal core design for high magnetic efficiency
• Supports robust through-hole mounting for secure PCB integration

Fixed Inductors Applications

• Industrial control systems requiring EMI filtering
• Power supply input stages for noise reduction
• Data communication interfaces needing signal integrity maintenance

Fixed Inductors Procurement Notes

Verify the specific part number against official KEMET documentation to confirm electrical parameters and physical dimensions. Ensure compatibility with existing board layouts and thermal management requirements before finalizing procurement decisions.

Fixed Inductors Selection Notes

Select this component when a through-hole solution is required for common mode noise attenuation in industrial or power applications. Consider the 8 A current rating and 113.5 µH inductance to ensure adequate filtering performance without saturation under expected load conditions.

Fixed Inductors Part Context

This component belongs to the KEMET SHBC series of toroidal common mode chokes. These components are designed for general-purpose electromagnetic interference suppression in electronic circuits, offering reliable performance in standard through-hole configurations.

Fixed Inductors Replacement Considerations

Cross-reference with other SHBC series variants such as SHBC14-1R2A0152V or SHBC20-1R7A0097V if different inductance or current ratings are needed. Verify pinout and mechanical footprint compatibility before substitution.
