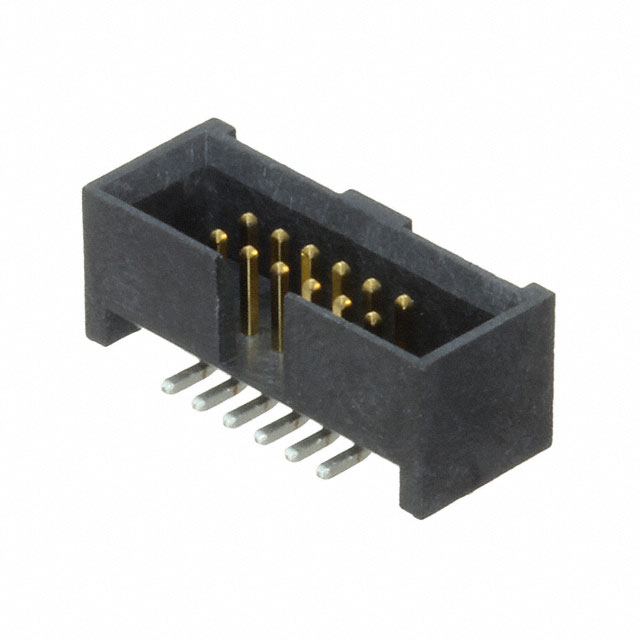

SHF-106-01-L-D-SM

Headers, Male Pins Overview

The SHF-106-01-L-D-SM is a shrouded terminal strip header manufactured by Samtec, designed for surface mount applications. It features a 2-row configuration with 12 positions and a 1.27 mm (0.05 in) pitch. The connector utilizes gold-plated phosphor bronze male pins housed in black liquid crystal polymer (LCP). Rated for operation between -55°C and +125°C, it offers a mating pin length of 3.05 mm and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Shrouded design provides four-wall protection for precise alignment during board-to-cable connections.
• Surface mount termination ensures secure attachment to printed circuit boards without through-hole requirements.
• Gold plating on phosphor bronze contacts supports reliable signal transmission and corrosion resistance.

Headers, Male Pins Applications

• Board-to-cable interconnections
• High-density electronic assemblies
• Automotive electronics modules

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against official Samtec documentation to confirm exact physical dimensions and contact specifications. Ensure compatibility with mating cable assemblies regarding pin length and shroud geometry. Confirm RoHS compliance status and material certifications required for your specific manufacturing environment before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, surface-mounted solution is required for high-density wiring. The 1.27 mm pitch allows for compact layouts compared to standard 2.54 mm headers. Consider the shrouded feature if misalignment prevention is critical for the assembly process or operational stability in vibration-prone environments.

Headers, Male Pins Part Context

This part belongs to the SHF series, which specializes in shrouded terminal strips for surface mount technology. The series is engineered for applications requiring robust mechanical retention and electrical reliability in space-constrained designs. It complements other Samtec interconnect solutions by offering specialized mounting styles and pitch options.

Headers, Male Pins Replacement Considerations

Consult official Samtec substitution guides for verified equivalents. Generic connectors may not match the precise shroud geometry or mating pin length requirements necessary for proper engagement with existing cable assemblies.

Headers, Male Pins FAQ

What is the mating pin length for this connector?

The specified mating pin length is 3.05 mm (0.12 in).

Is this connector latched or unlatched?

The SHF-106-01-L-D-SM is an unlatched connector type.
