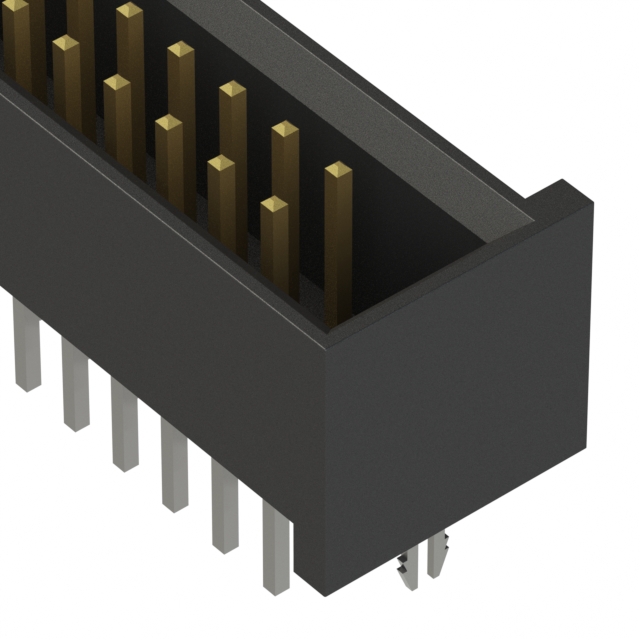

SHF-113-01-L-D-TH-LC is listed in the Headers, Male Pins range at ChipApex. The manufacturer field lists Samtec Inc.. Its product description is CONN HEADER VERT 26POS 1.27MM. Review the specifications below when checking this part for your BOM.
Headers, Male Pins specifications for SHF-113-01-L-D-TH-LC
- Description：CONN HEADER VERT 26POS 1.27MM
- Series：SHF
- Mfr：Samtec Inc.
- Package：Tube
- Connector Type：Header
- Contact Type：Male Pin
- Pitch - Mating：0.050" (1.27mm)
- Number of Positions：26
- Number of Rows：2
- Row Spacing - Mating：0.050" (1.27mm)
- Number of Positions Loaded：All
- Style：Board to Cable/Wire
- Shrouding：Shrouded - 4 Wall
- Mounting Type：Through Hole
- Termination：Solder
- Fastening Type：Push-Pull
- Contact Length - Mating：0.120" (3.05mm)
- Contact Length - Post：0.075" (1.91mm)
- Overall Contact Length：-
- Insulation Height：0.210" (5.33mm)
- Contact Shape：Square
- Contact Finish - Mating：Gold
- Contact Finish Thickness - Mating：10.0µin (0.25µm)
- Contact Finish - Post：Tin
- Contact Material：Phosphor Bronze
- Insulation Material：Liquid Crystal Polymer (LCP)
- Features：Board Lock, Keying Slot
- Operating Temperature：-55°C ~ 125°C
- Ingress Protection：-
- Material Flammability Rating：UL94 V-0
- Insulation Color：Black
- Current Rating (Amps)：3A
- Voltage Rating：-
Headers, Male Pins datasheet and documents for SHF-113-01-L-D-TH-LC
Headers, Male Pins Overview
The SHF-113-01-L-D-TH-LC is a board connector header manufactured by Samtec Inc. It features a .050 inch (1.27 mm) terminal pitch and contains 26 contacts arranged in two rows. The component utilizes a straight through-hole solder termination method for PCB mounting. Contact finishes include tin over nickel, with phosphor bronze contact materials. The housing is black and shrouded to guide mating cables.
Headers, Male Pins Feature Summary
- Shrouded design provides cable alignment guidance
- Through-hole solder tail enables secure PCB attachment
- Compatible with FFSD flat ribbon cable assemblies
Headers, Male Pins Applications
- FFSD flat ribbon cable interconnects
- General purpose board-to-cable connections
- IDC cable system integration
Headers, Male Pins Procurement Notes
Verify the specific suffix LC indicates lead-free compliance and low profile characteristics as per Samtec documentation. Confirm RoHS and REACH regulatory status matches project requirements. Check MSL 1 rating for soldering process compatibility. Ensure the through-hole termination type aligns with the target PCB assembly technology.
Headers, Male Pins Selection Notes
Select this part when a shrouded header is required for .050 inch pitch applications. The two-row configuration supports higher density connections than single-row alternatives. Verify that the straight orientation fits the mechanical constraints of the enclosure. Consider the strain relief requirements if mating with flexible ribbon cables.
Headers, Male Pins Part Context
This component belongs to the SHF series of shrouded terminal strips designed specifically for use with FFSD and FFTP cable systems. The series offers various mounting options including surface mount and through-hole variants. The SHF-113-01-L-D-TH-LC represents the standard through-hole version with dual row configuration.
Headers, Male Pins Replacement Considerations
Public confirmed substitute part numbers are not available in the provided documentation. Consult Samtec engineering for direct replacements or alternative configurations within the SHF family.
