SHP-48+

Overview

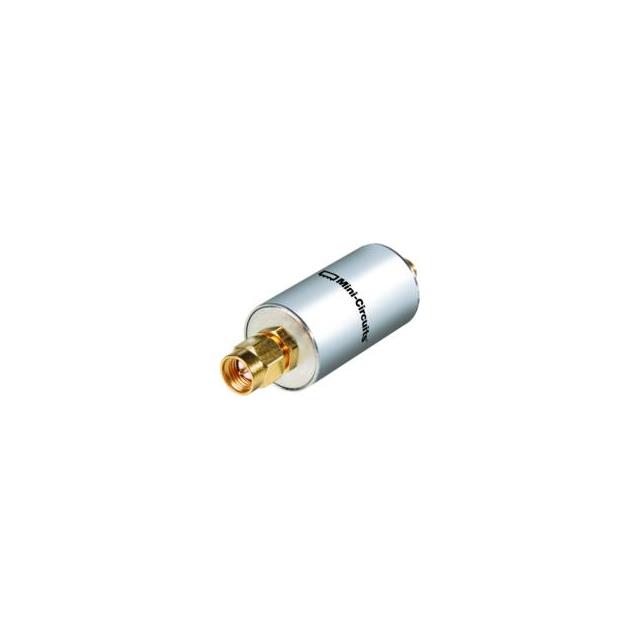

The SHP-48+ is a lumped LC high-pass filter manufactured by Mini-Circuits, designed for signal conditioning in radio frequency applications. It operates within a passband range of 48 MHz to 2150 MHz and features an SMA connectorized package. The device provides low insertion loss and high rejection characteristics, ensuring effective filtering of unwanted lower-frequency signals while maintaining signal integrity across the specified bandwidth.

Feature Summary

• Lumped LC high-pass filter design
• SMA connectorized package
• Low insertion loss performance
• High rejection capability

Applications

• SATCOM systems
• CATV networks
• Broadband fiber networks

Procurement Notes

Verify the specific datasheet version when sourcing the SHP-48+ to ensure compatibility with current manufacturing standards. Confirm that the SMA connectors match your system requirements. Check for any updated environmental compliance certifications if required for your region. Ensure the component meets the thermal and mechanical specifications outlined in the official documentation before integration.

Selection Notes

Select the SHP-48+ when a high-pass filter is needed for frequencies starting at 48 MHz up to 2150 MHz. Its lumped LC construction offers a compact solution compared to distributed designs. The connectorized format simplifies integration into test setups or permanent installations without requiring custom PCB layout for the filter element itself.

Part Context

This component belongs to Mini-Circuits' SHP series of lumped LC high-pass filters. These devices are engineered for general-purpose RF signal conditioning where reliable attenuation of sub-band frequencies is critical. The series is known for balancing performance with cost-effectiveness in commercial and industrial RF environments.

Replacement Considerations

Consult the official Mini-Circuits substitution guide for verified alternatives. No direct public substitute part numbers are confirmed in the provided source material.
