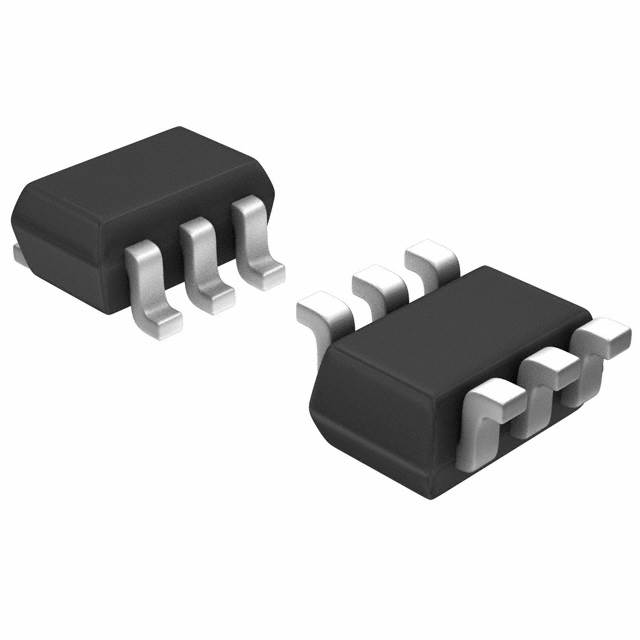

SI1865DDL-T1-BE3

$0.37

Description：IC PWR SWITCH P-CHAN 1:1 SC70-6
Series：TrenchFET®
Mfr：Vishay Siliconix
Package：Tape & Reel (TR),Cut Tape (CT)

SKU:a88940832f1f Category: Power Distribution Switches, Load Drivers Brand: Vishay Siliconix

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

Product Detailed Parameters

Description：IC PWR SWITCH P-CHAN 1:1 SC70-6
Series：TrenchFET®
Mfr：Vishay Siliconix
Package：Tape & Reel (TR),Cut Tape (CT)
Switch Type：General Purpose
Number of Outputs：1
Ratio - Input:Output：1:01
Output Configuration：High Side
Output Type：P-Channel
Interface：On/Off
Voltage - Load：1.8V ~ 12V
Voltage - Supply (Vcc/Vdd)：1.5V ~ 8V
Current - Output (Max)：1.1A
Rds On (Typ)：165mOhm
Input Type：-
Features：Slew Rate Controlled
Fault Protection：-
Operating Temperature：-55°C ~ 150°C (TJ)
Mounting Type：Surface Mount
Supplier Device Package：SC-70-6
Package / Case：6-TSSOP, SC-88, SOT-363
Grade：-
Qualification：-

Download product information

SI1865DDL-T1-BE3

Overview

The SI1865DDL-T1-BE3 is a P-Channel Power Switch IC manufactured by Vishay Siliconix. It integrates a single channel with a continuous current rating of 1.1 A and operates at a supply voltage of 12 V. The device utilizes TrenchFET technology for efficient switching performance. It is housed in an SC-70-6 surface-mount package, designed for compact circuit board layouts. This component functions as a load switch or power distribution element within electronic systems.

Feature Summary

Integrates a single P-Channel MOSFET with control logic for simplified system design
Utilizes TrenchFET technology to achieve low on-resistance and efficient power handling
Provides overcurrent protection capabilities inherent to the power switch IC architecture

Applications

Power distribution networks in portable consumer electronics
Load switching for peripheral devices in mobile communication equipment
Battery-powered device power management circuits

Procurement Notes

Verify the specific suffix and marking code against the official Vishay datasheet to confirm the exact variant. Ensure the SC-70-6 footprint matches the target PCB layout. Confirm RoHS compliance status through the manufacturer's latest documentation before finalizing procurement specifications.

Selection Notes

Select this component when a compact, integrated solution is required for low-current P-Channel switching applications. The SC-70-6 package offers space efficiency compared to discrete MOSFETs. Consider the 1.1 A current limit and 12 V operating range to ensure compatibility with the target load requirements.

Part Context

This part belongs to the Vishay Siliconix family of integrated power switches. These components combine MOSFET drivers with protection features to simplify power management designs. The SI1865DDL series is specifically engineered for applications requiring reliable load switching in small form factors.
