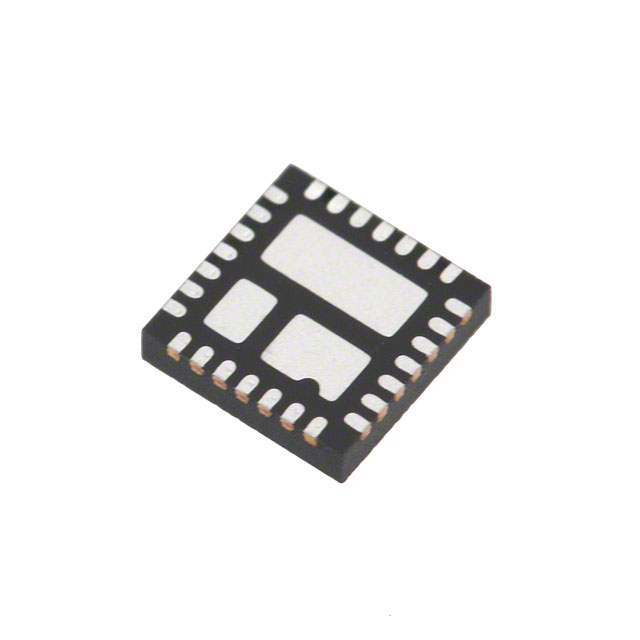

SIC424CD-T1-GE3

Overview

The SIC424CD-T1-GE3 is a microBUCK integrated buck regulator featuring an integrated 5 V LDO. It delivers 6 A continuous output current with efficiency exceeding 95%. The device includes an integrated bootstrap switch and supports input voltages from 2.5 V to 24 V. Output voltage ranges from 0.75 V to 5.5 V. It utilizes a 44MLP-28 package.

Feature Summary

• Integrates a high-efficiency synchronous buck converter with an independent 5 V linear regulator.
• Includes an internal bootstrap switch to simplify external component requirements.
• Features bypass logic for the integrated LDO to optimize performance under varying load conditions.

Applications

• Point-of-load regulation in industrial equipment
• Power management for embedded computing systems
• Telecommunications infrastructure power distribution

Procurement Notes

Verify the specific suffix and tape-and-reel configuration against the manufacturer's latest datasheet before ordering. Confirm that the 44MLP-28 footprint matches your PCB design constraints. Ensure thermal management strategies align with the 6 A continuous current capability and junction temperature limits specified in the official documentation.

Selection Notes

Select this component when a compact solution combining a high-current buck converter with a low-noise LDO is required. The integrated bootstrap switch reduces bill of materials count. Verify that the input voltage range of 2.5 V to 24 V covers your system's supply variations. Consider the thermal dissipation characteristics of the 44MLP-28 package for your enclosure design.

Part Context

This part belongs to Vishay Siliconix's microBUCK series, designed for space-constrained applications requiring high power density. The integration of switching and linear regulation stages allows for simplified board layouts compared to discrete solutions. It targets markets demanding reliable power conversion with minimal external passive components.

Replacement Considerations

Check for direct pin-compatible alternatives within the SiC414 or SiC424 families. Verify electrical parameters such as output current and input voltage range match your design requirements before substituting.
