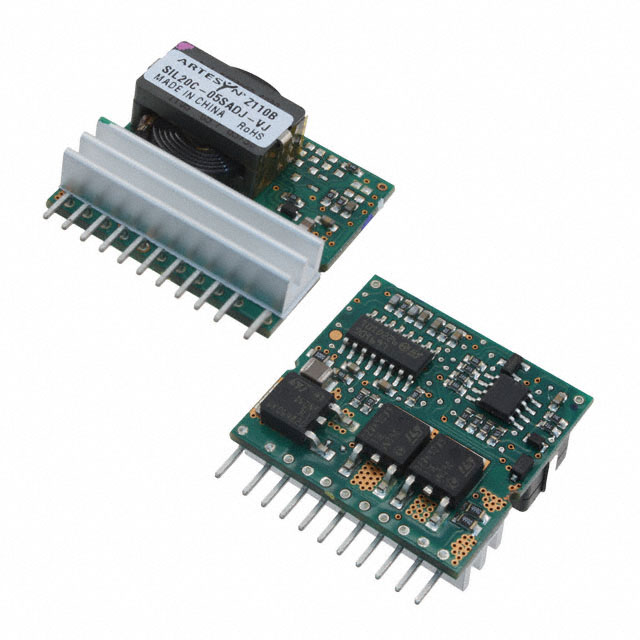

SIL20C-05SADJ-VJ

SIL20C-05SADJ-VJ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 0.9-3.3V 66W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SIL20C-05SADJ-VJ

• Description：DC DC CONVERTER 0.9-3.3V 66W
• Series：SIL20C (100W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：4.5V
• Voltage - Input (Max)：5.5V
• Voltage - Output 1：0.9 ~ 3.3V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：20A
• Power (Watts)：66 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OCP, SCP
• Operating Temperature：0°C ~ 80°C
• Efficiency：87%
• Mounting Type：Through Hole
• Package / Case：11-SIP Module
• Size / Dimension：1.20" L x 0.45" W x 1.10" H (30.5mm x 11.4mm x 27.9mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for SIL20C-05SADJ-VJ
