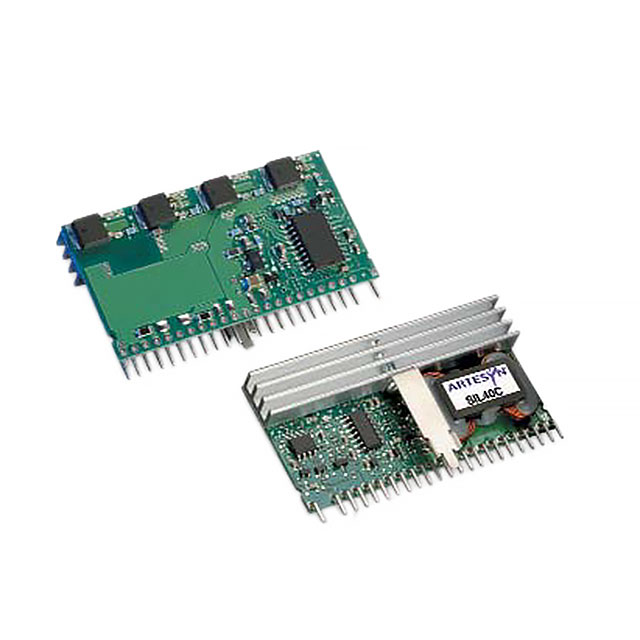

SIL40C-12SADJ-VJ

SIL40C-12SADJ-VJ is listed in the DC DC Converters range at ChipApex. The manufacturer field lists ARTESYN / Advanced Energy. Its product description is DC DC CONVERTER 0.9-5V 200W. Review the specifications below when checking this part for your BOM.

DC DC Converters specifications for SIL40C-12SADJ-VJ

• Description：DC DC CONVERTER 0.9-5V 200W
• Series：SIL40C (200W)
• Mfr：ARTESYN / Advanced Energy
• Package：Tray
• Type：Non-Isolated PoL Module
• Number of Outputs：1
• Voltage - Input (Min)：10.2V
• Voltage - Input (Max)：13.8V
• Voltage - Output 1：0.9 ~ 5V
• Voltage - Output 2：-
• Voltage - Output 3：-
• Voltage - Output 4：-
• Current - Output (Max)：40A
• Power (Watts)：200 W
• Voltage - Isolation：-
• Applications：ITE (Commercial)
• Features：Remote On/Off, OTP, SCP
• Operating Temperature：0°C ~ 80°C
• Efficiency：92%
• Mounting Type：Through Hole
• Package / Case：24-SIP Module, 23 Leads
• Size / Dimension：2.40" L x 0.52" W x 1.25" H (61.0mm x 13.2mm x 31.8mm)
• Supplier Device Package：-
• Control Features：-
• Approval Agency：-
• Standard Number：-
• Grade：-
• Qualification：-

DC DC Converters datasheet and documents for SIL40C-12SADJ-VJ
