SIM2602M

Overview

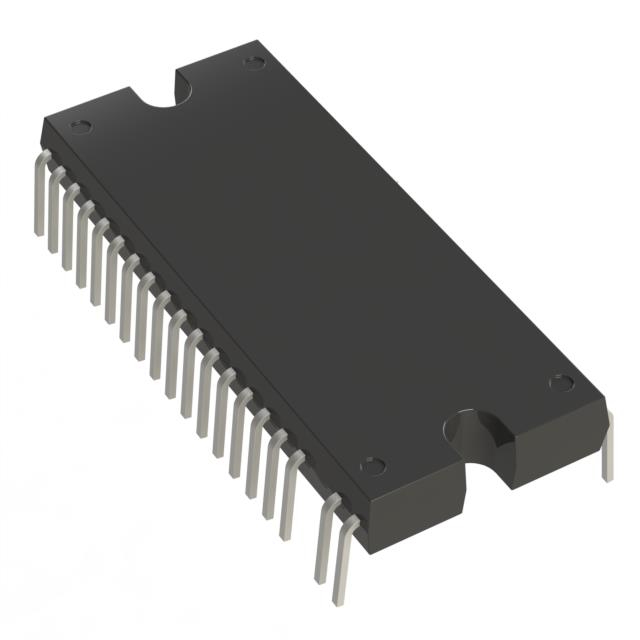

The SIM2602M is a high-voltage intelligent power module (IPM) designed for three-phase motor control applications. It integrates a driver and power stage using power MOSFET technology within a 40-DIP package. The device supports multi-phase motors, including brushless DC types, with an output current capacity of 5A per phase. It operates with a supply voltage range of 13.5V to 16.5V and withstands load voltages up to 400V. The module features a parallel interface and is housed in a 40-lead DIP (LF2971) enclosure suitable for through-hole mounting.

Feature Summary

• Integrates full control and power stages for three-phase motor driving
• Utilizes power MOSFET technology for efficient switching
• Supports parallel interface communication for control signals

Applications

• Fan motor drivers
• Three-phase AC/DC motor control systems
• Brushless DC (BLDC) motor applications

Procurement Notes

Verify the specific ordering suffix and package variant against the manufacturer's latest datasheet to ensure compatibility with your design requirements. Confirm RoHS compliance status and moisture sensitivity level prior to procurement. Check for parameter-equivalent alternatives such as the SIM6892M or SIM6893M if availability is constrained. Ensure the supplier provides official documentation to validate the component's authenticity and technical specifications.

Selection Notes

Select this component when designing systems requiring integrated three-phase motor drive capabilities with high voltage tolerance. The 40-DIP package facilitates through-hole assembly, which may be preferred for specific mechanical stability needs. Consider the 5A output current rating and 400V load voltage capability to ensure the module meets the power requirements of the target motor application without exceeding thermal limits.

Part Context

The SIM2602M belongs to the SIM260xM series of intelligent power modules manufactured by Sanken Electric USA Inc. These modules are engineered for robust performance in motor control environments, combining gate drive logic with high-power switching elements. The series targets industrial and consumer applications requiring reliable three-phase motor operation with simplified system design due to the integration of control and power functions.

Replacement Considerations

Publicly confirmed parameter-equivalent substitutes include the SIM6892M and SIM6893M from Sanken Electric USA Inc. Verify pinout compatibility and electrical specifications before substitution.
