SIP32414DNP-T1-GE4

Overview

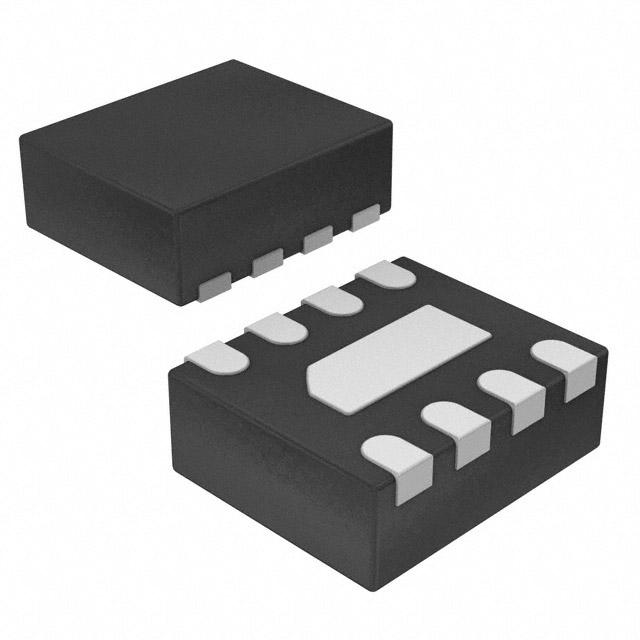

The SIP32414DNP-T1-GE4 is a dual-channel power distribution switch manufactured by Vishay Siliconix. It features a non-inverting logic input and supports a continuous output current of up to 2.4A per channel. The device incorporates slew rate control to minimize inrush currents during load connection. Integrated fault protection includes reverse current blocking capabilities. It operates within a standard voltage range and utilizes an 8-pin TDFN package with an exposed pad for thermal management.

Feature Summary

• Dual-channel architecture with independent control
• Slew rate controlled load switching functionality
• Reverse current protection mechanism
• Load discharge capability

Applications

• Power distribution in portable computing devices
• Battery-powered equipment load switching
• Peripheral power management circuits

Procurement Notes

Verify the specific suffix GE4 indicates RoHS compliance and halogen-free status as per Vishay standards. Confirm the TDFN-8EP package dimensions match your PCB footprint requirements. Ensure the non-inverting input logic aligns with your system control signals. Check for any recent lifecycle notices regarding this specific part number before finalizing procurement plans.

Selection Notes

Select this component when dual isolated power paths are required with controlled turn-on characteristics. The 2.4A rating suits moderate load applications where inrush limiting is critical. Consider the TDFN package for space-constrained designs requiring efficient heat dissipation through the exposed pad. Verify that the reverse current protection meets your system's safety isolation requirements.

Part Context

This part belongs to the SIP324xx series of power switches from Vishay Siliconix, designed for efficient power management in mobile and industrial applications. The series typically offers low on-resistance and compact packaging solutions. The SIP32414 variant specifically provides dual-channel control with advanced protection features compared to single-channel alternatives.

Replacement Considerations

Consult official Vishay documentation for direct pin-to-pin replacements. Generic equivalents may lack the specific slew rate control or reverse current protection characteristics. Verify that any substitute maintains the same TDFN-8EP package outline and electrical ratings.
