SIP4282ADVP2-T1GE3

Overview

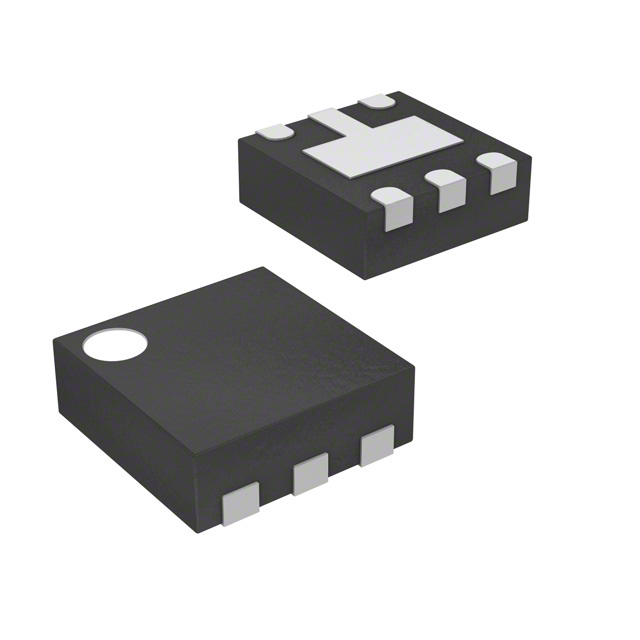

The SIP4282ADVP2-T1GE3 is a load switch manufactured by Vishay Siliconix. It operates within a supply voltage range of 1.8 V to 5.5 V and supports a continuous current of 1.2 A. The device features a maximum on-resistance of 480 mΩ, with a typical turn-on time of 20 µs and turn-off time of 4 µs. It is housed in an SC-75-6 package and functions reliably across an operating temperature range from -40 °C to +85 °C.

Feature Summary

• Integrated slew rate control for load management
• Low on-resistance for efficient power distribution
• Compact surface-mount packaging

Applications

• Power distribution circuits
• Load switching applications
• Portable electronic devices

Procurement Notes

Verify the exact part number against official Vishay documentation, as suffix variations may indicate different thermal or electrical characteristics. Confirm RoHS compliance status and specific tape-and-reel specifications required for your assembly process before finalizing procurement orders.

Selection Notes

Select this component when a low-voltage, single-channel load switch with controlled slew rates is required. Ensure the 1.2 A current rating and 480 mΩ resistance meet system efficiency targets. Verify that the SC-75-6 footprint aligns with existing PCB layout constraints.

Part Context

This component belongs to the SIP4282 series of load switches from Vishay Siliconix. These devices are designed for portable applications requiring efficient power management. The series typically offers protection features and fast switching capabilities suitable for battery-powered systems.

Replacement Considerations

Check for SIP4282DVP3-T1GE3 as a potential variant. Verify pin compatibility and electrical parameter equivalence before substitution.
