SIT2024BA-S2-33N-8.000000

Oscillators Overview

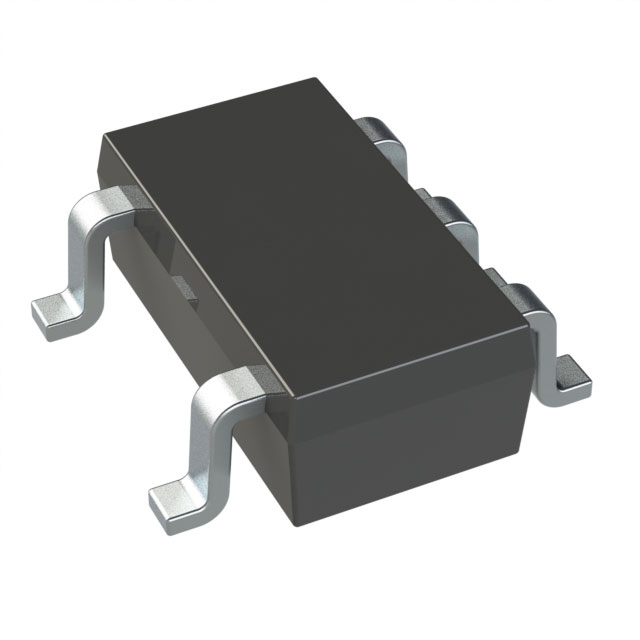

The SiTime SIT2024BA-S2-33N-8.000000 is a standard MEMS oscillator operating at 8 MHz with LVCMOS/LVTTL output levels and a 3.3V supply voltage. It features ±25 ppm frequency stability and operates within a temperature range of -40°C to +125°C. The device consumes 4.8 mA current and is housed in an SC-74A (SOT-753) package.

Oscillators Feature Summary

• Utilizes silicon MEMS resonator technology for robust timing performance
• Supports wide industrial operating temperature range from -40°C to +125°C
• Provides stable frequency output with ±25 ppm accuracy

Oscillators Applications

• Low-power embedded system designs
• Network synchronization equipment
• Consumer electronics requiring precise clock signals

Oscillators Procurement Notes

Verify the specific suffix codes against official SiTime documentation to ensure correct voltage, frequency tolerance, and packaging specifications. Confirm that the SC-74A package matches your PCB footprint requirements. Check for RoHS compliance status if required by your manufacturing standards. Ensure the active part status is confirmed before finalizing procurement plans.

Oscillators Selection Notes

Select this component when a compact 3.3V MEMS oscillator with industrial temperature rating is required. The 8 MHz frequency suits applications needing moderate speed clock sources. Consider the SOT-753 package size for space-constrained layouts. Verify compatibility with LVCMOS/LVTTL logic levels used in the target circuit design.

Oscillators Part Context

This part belongs to the SiT2024B series of precision MEMS oscillators. It represents a shift from traditional quartz crystals to silicon-based timing solutions, offering improved shock resistance and lower power consumption. The series targets applications demanding reliability in harsh environments.

Oscillators Replacement Considerations

Direct substitutes must match the 8 MHz frequency, 3.3V supply, SC-74A package, and ±25 ppm stability. Verify electrical compatibility with existing LVCMOS/LVTTL interfaces. Ensure thermal characteristics align with the -40°C to +125°C operational range.
