SIT8208AC-G2-18E-12.000000T

Oscillators Overview

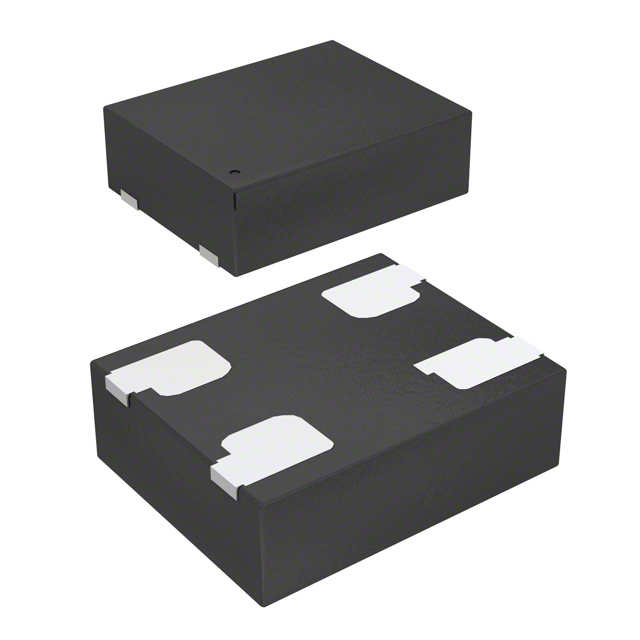

The SIT8208AC-G2-18E-12.000000T is a standard MEMS oscillator from SiTime, operating at a frequency of 12 MHz with an output format of LVCMOS/LVTTL. It functions within a supply voltage range of 1.71 V to 1.89 V and supports Enable/Disable control via the OE pin. The device is housed in a 4-SMD, No Lead package and operates across a temperature range of -40°C to +85°C.

Oscillators Feature Summary

• Utilizes silicon MEMS technology for robust clock generation
• Supports active enable/disable functionality for power management
• Compatible with LVCMOS and LVTTL logic standards

Oscillators Applications

• General-purpose digital system clocking
• Embedded microcontroller timing sources
• Industrial control equipment

Oscillators Procurement Notes

Verify the specific suffix 'T' corresponds to the required tape and reel packaging quantity and width as defined by the manufacturer's ordering guide. Confirm that the 12 MHz frequency and 1.8V supply requirements align with the target circuit design before procurement. Ensure the 4-SMD no-lead package dimensions are compatible with the PCB footprint.

Oscillators Selection Notes

Select this component when a low-power, enable-controlled oscillator is required for 12 MHz applications. The AC grade indicates specific stability parameters suitable for general industrial environments. Consider the 1.8V supply constraint and LVCMOS/LVTTL output compatibility against other system voltage rails and logic families.

Oscillators Part Context

This part belongs to the SiT8208 series of silicon oscillators, which replace traditional quartz crystals. The series offers high reliability and shock resistance. The specific model integrates the oscillator core and drive circuitry into a compact surface-mount package, simplifying board layout compared to discrete crystal solutions.

Oscillators Replacement Considerations

Direct replacements must match the 12 MHz frequency, 1.8V supply, and 4-SMD package. Verify if alternative MEMS oscillators support the same Enable/Disable pin configuration and LVCMOS/LVTTL output swing levels to ensure functional equivalence.
