SIT8208AI-81-33S-10.000000

Oscillators Overview

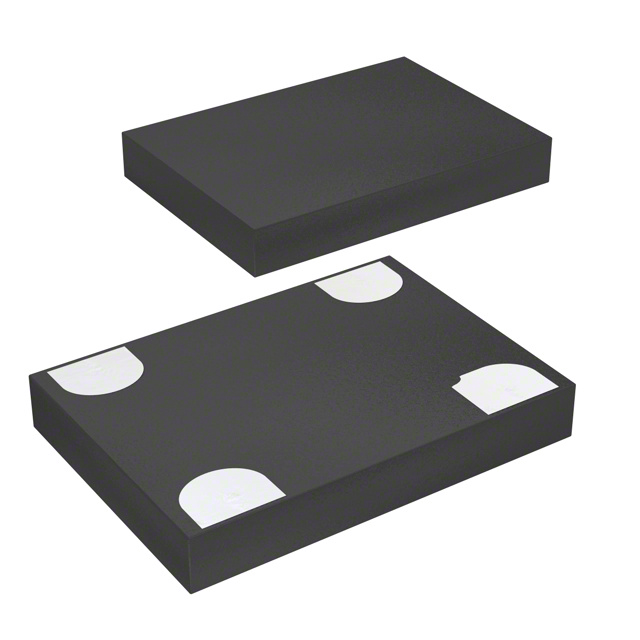

The SiTime SIT8208AI-81-33S-10.000000 is a standard clock oscillator featuring a 10 MHz output frequency with ±20 ppm stability. It operates on a 3.3V supply and supports LVCMOS/LVTTL outputs in a 4-SMD package. The device provides an operating temperature range of -20°C to +70°C, ensuring reliable timing performance for commercial applications requiring precise frequency generation.

Oscillators Feature Summary

• LVCMOS/LVTTL compatible output interface
• Factory programmable MEMS technology
• Drop-in replacement for quartz oscillators

Oscillators Applications

• Computing systems
• Storage devices
• Networking equipment

Oscillators Procurement Notes

Verify the specific suffix codes against official documentation to confirm voltage, temperature grade, and package dimensions. Ensure the ordering part number matches the required frequency tolerance and output load specifications for the target design implementation.

Oscillators Selection Notes

Select this model for designs requiring a direct replacement for legacy quartz components. Confirm that the 3.3V supply and -20°C to +70°C temperature range align with system requirements. Verify footprint compatibility with existing PCB layouts before integration.

Oscillators Part Context

This component belongs to the SiT8208 series of ultra-performance MEMS oscillators. The series offers high reliability and low phase jitter, serving as a flexible alternative to traditional crystal-based solutions across various industrial and commercial electronic applications.

Oscillators Replacement Considerations

The SiT8208 series is designed as a pin-to-pin drop-in replacement for many legacy quartz, SAW, and overtone oscillators. Verify mechanical footprint and electrical parameters when substituting specific quartz models.
