SIT8918BA-33-33E-75.000000

$2.70

Description：MEMS OSC XO 75.0000MHZ LVCMOS LV
Series：SiT8918B
Mfr：SiTime
Package：Strip

SKU:5897f963214f Category: Oscillators Brand: SiTime

Consult the customer manager about the wholesale price.

consultation hotline：86-132-6715-2157

email：[email protected]
Contact the product manager for consultation. One-stop consultation is available.

Do you want a lower wholesale price? Please send us your inquiry and we will reply immediately.

Product introduction

SIT8918BA-33-33E-75.000000 is listed in the Oscillators range at ChipApex. The manufacturer field lists SiTime. Its product description is MEMS OSC XO 75.0000MHZ LVCMOS LV. Review the specifications below when checking this part for your BOM.

Oscillators specifications for SIT8918BA-33-33E-75.000000

Description：MEMS OSC XO 75.0000MHZ LVCMOS LV
Series：SiT8918B
Mfr：SiTime
Package：Strip
Base Resonator：MEMS
Type：XO (Standard)
Frequency：75 MHz
Function：Enable/Disable
Output：LVCMOS, LVTTL
Voltage - Supply：3.3V
Frequency Stability：±50ppm
Absolute Pull Range (APR)：-
Operating Temperature：-40°C ~ 125°C
Spread Spectrum Bandwidth：-
Current - Supply (Max)：4.5mA
Ratings：-
Mounting Type：Surface Mount

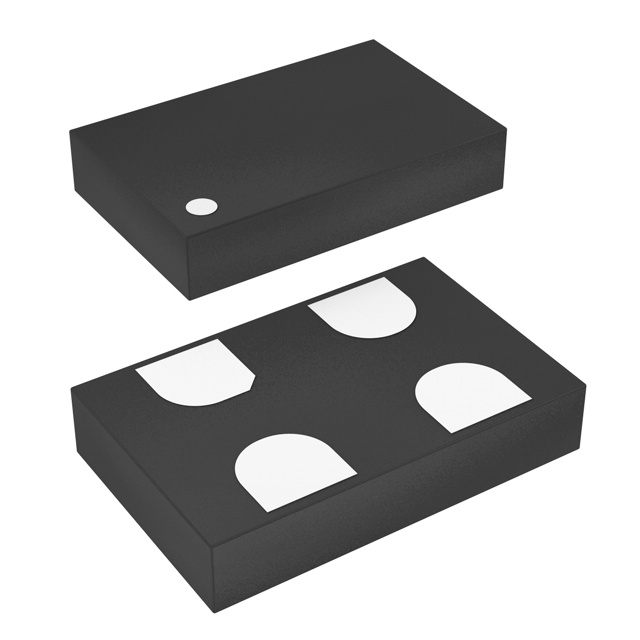

Package / Case：4-SMD, No Lead
Size / Dimension：0.197" L x 0.126" W (5.00mm x 3.20mm)
Height - Seated (Max)：0.031" (0.80mm)
Supplier Device Package：4-PQFN (5x3.2)

Oscillators datasheet and documents for SIT8918BA-33-33E-75.000000

SIT8918BA-33-33E-75.000000

Oscillators Overview

The SiT8918BA-33-33E-75.000000 is a MEMS oscillator operating at 75 MHz with LVCMOS/LVTTL output formats. It functions within a 3.3 V supply voltage range and supports an enable/disable control pin. The device exhibits a frequency stability of ±10 ppm and maintains operation across a temperature range of -40°C to +85°C. Packaged in a 4-SMD, No Lead (2520) footprint measuring 2.5 mm x 2.0 mm x 0.75 mm, it draws a maximum current of 29 mA.

Oscillators Feature Summary

Best-in-class shock and vibration resistance for reliable timing
Programmable silicon MEMS technology replacing quartz crystals
Integrated enable/disable functionality for power management

Oscillators Applications

Low-power embedded designs requiring stable timing sources
Industrial systems demanding high reliability under mechanical stress
Consumer electronics utilizing MEMS oscillators for clock generation

Oscillators Procurement Notes

Verify the specific suffix codes against the manufacturer's official datasheet to ensure compatibility with required voltage levels, frequency tolerances, and package dimensions. Confirm that the ordering part number matches the exact electrical specifications needed for the target application circuit design.

Oscillators Selection Notes

Select this component when superior mechanical robustness against shock and vibration is required compared to traditional quartz alternatives. Ensure the system design accommodates the 3.3 V supply requirement and utilizes the enable pin if dynamic power control is necessary for the specific operational mode.

Oscillators Part Context

This model belongs to the SiT8918 family of precision timing solutions. The series offers wide frequency ranges from 1 MHz to 110 MHz. These devices utilize Silicon MEMS technology to provide programmable clock signals with enhanced durability and configurability over standard crystal oscillators.

Oscillators Replacement Considerations

SiTime Direct® allows configuration of equivalent parts. Verify cross-references using official substitution tools rather than generic industry equivalents to ensure parameter alignment.
