SIT8920BM-71-XXE-24.000000

Oscillators Overview

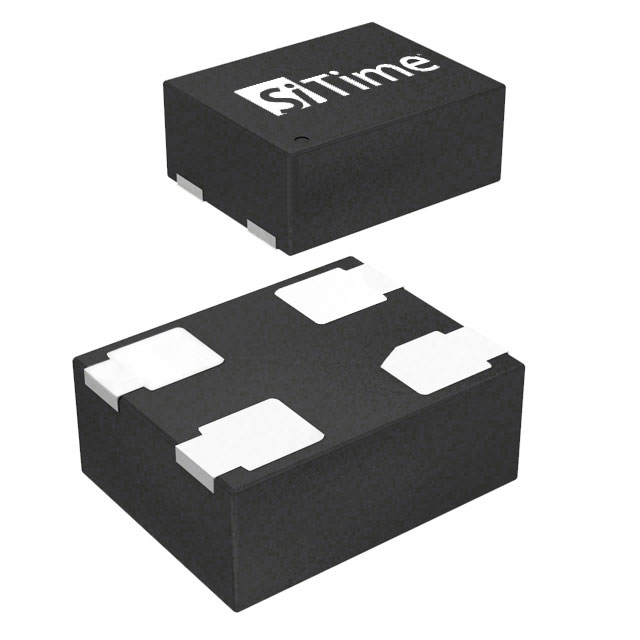

The SiTime SIT8920BM-71-XXE-24.000000 is a standard single-ended MEMS oscillator operating at 24 MHz with LVCMOS/LVTTL output formats. It features ±20 ppm frequency stability and operates within a wide temperature range of -55°C to +125°C. The device supports supply voltages from 1.62 V to 1.98 V or 2.25 V to 3.63 V depending on configuration, housed in a compact 2.0 x 1.6 mm SMD package.

Oscillators Feature Summary

• High reliability with 50 billion hour MTBF and vacuum-sealed Episeal technology
• Robust performance under extreme conditions including 50,000 g shock resistance
• Field programmable for customizable frequency and stability specifications

Oscillators Applications

• Military and aerospace timing systems requiring wide temperature operation
• Industrial embedded designs needing high vibration resistance
• Automotive electronics demanding AEC-Q100 level reliability

Oscillators Procurement Notes

Verify the specific voltage and stability suffixes against the official datasheet to ensure compatibility with system requirements. Confirm package dimensions and output format match the target PCB design. Check for field-programmable options if custom frequencies are needed beyond the standard 24 MHz specification.

Oscillators Selection Notes

Select this component for applications requiring superior shock and vibration resistance compared to quartz oscillators. Ensure the supply voltage aligns with the 1.8V or 2.5-3.3V variants available. Consider the small 2.0x1.6mm footprint for space-constrained designs requiring military-grade temperature ranges.

Oscillators Part Context

Part of the SiT8920B series, designed as a robust alternative to traditional quartz crystals. Utilizes MEMS technology for enhanced reliability and smaller form factors. Suitable for replacing discrete crystal resonators in high-reliability digital circuits.

Oscillators Replacement Considerations

Direct replacement for quartz oscillators in rugged environments. Verify pinout compatibility and voltage levels when substituting into existing designs.
