SIT9375AI-02A1-3310-50.000000E

Oscillators Overview

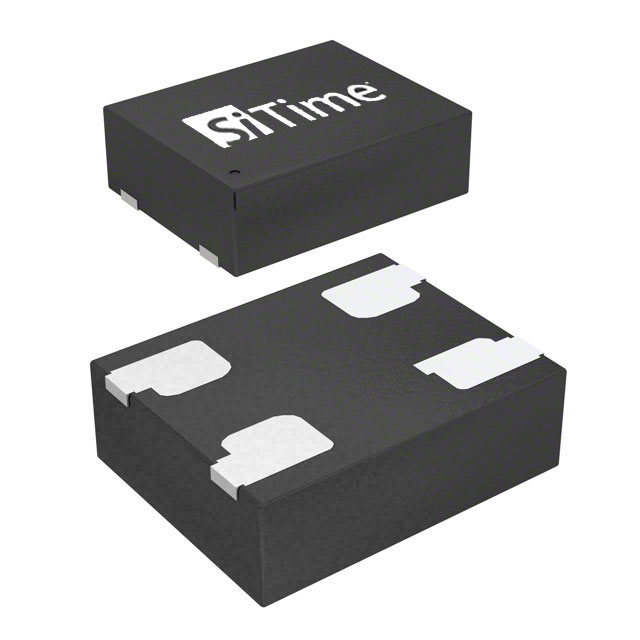

The SiTime SIT9375AI-02A1-3310-50.000000E is a standard clock oscillator operating at a nominal frequency of 50 MHz. It utilizes LVDS output signaling and functions within a supply voltage range of 2.97 V to 3.63 V, with a nominal rating of 3.3 V. The device supports an enable/disable control function with active-high logic. It is housed in a 6-terminal surface-mount package measuring 2.0 mm by 2.0 mm by 0.9 mm. The unit maintains a frequency stability of ±20 ppm across an operating temperature range of -40 °C to +85 °C.

Oscillators Feature Summary

• Differential MEMS technology engineered for low-jitter performance
• LVDS output interface providing robust signal integrity
• Active-high enable/disable functionality for power management

Oscillators Applications

• High-speed data communication interfaces
• Network synchronization equipment
• Test and measurement instrumentation

Oscillators Procurement Notes

Verify the specific suffix codes against official documentation to confirm pinout compatibility and electrical characteristics. Ensure the selected variant matches the required output type and enclosure dimensions for the target PCB layout. Cross-reference the part number with manufacturer databases to validate current production status and regional availability constraints prior to procurement.

Oscillators Selection Notes

Select this component when LVDS signaling is required for differential clock distribution. Confirm that the ±20 ppm stability meets system timing requirements. Verify that the 2016 package footprint aligns with existing board designs. Ensure the operating temperature range covers the environmental conditions of the final application.

Oscillators Part Context

This model belongs to the SiT9375 family of differential MEMS oscillators designed for standard frequencies up to 644.53125 MHz. The series replaces traditional quartz solutions with silicon-based alternatives offering improved shock resistance and smaller form factors while maintaining comparable jitter performance.

Oscillators Replacement Considerations

SiT9501AI-02A1-3310-333.330000E is listed as a parametric equivalent in distributor catalogs. Verify functional compatibility before substitution.
