SIT9375AI-04B3-1810-333.330000E

Oscillators Overview

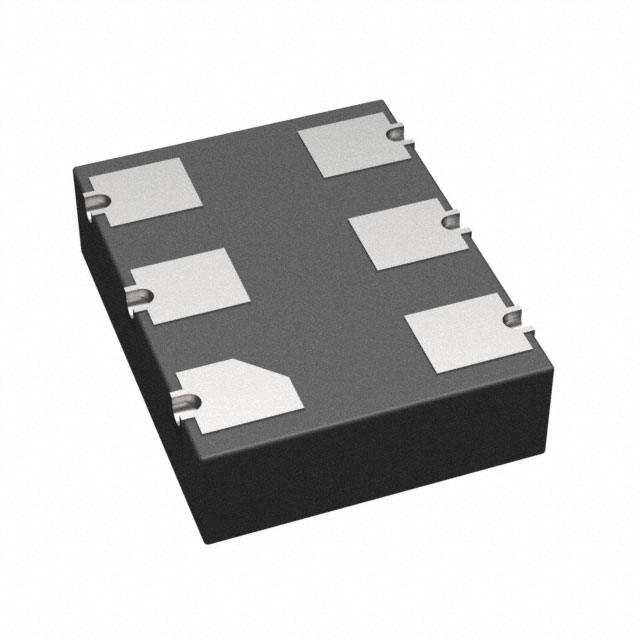

The SiTime SIT9375AI-04B3-1810-333.330000E is a standard clock oscillator utilizing Silicon MEMS technology, manufactured by SiTime. It operates at a fixed frequency of 333.33 MHz and features HCSL output signaling. The device supports a supply voltage of 1.8 V with an active-high enable function. It is housed in a compact 6-SMD, No Lead package with dimensions of 3225 (3.2 mm x 2.5 mm). The component is rated for an industrial temperature range of -40°C to +85°C and maintains a frequency stability of ±50 ppm.

Oscillators Feature Summary

• Utilizes Silicon MEMS technology for robust clock generation
• Features HCSL differential output signaling for signal integrity
• Supports active-high enable/disable functionality
• Designed for high reliability with low phase jitter characteristics

Oscillators Applications

• High-speed data communication interfaces
• Network infrastructure equipment
• Server and storage systems requiring precise timing
• Industrial control applications within specified temperature ranges

Oscillators Procurement Notes

Verify the complete part number against official SiTime documentation to ensure correct configuration. Confirm that the specific suffixes match the required frequency, output type, and package style. Check for any recent revisions or obsolescence notices from the manufacturer before finalizing procurement plans.

Oscillators Selection Notes

Select this component when a 333.33 MHz HCSL clock source is required in a 3225 package. Ensure the system design accommodates the 1.8 V supply voltage and active-high enable logic. Consider the ±50 ppm stability requirement relative to system timing budgets and the industrial temperature range suitability for the operating environment.

Oscillators Part Context

This model belongs to the SiT9375 series of ultra-low jitter differential MEMS oscillators from SiTime. These devices are engineered to replace traditional quartz crystals in high-performance applications, offering superior shock and vibration resistance while maintaining small form factors suitable for dense PCB layouts.

Oscillators Replacement Considerations

Consult official SiTime substitution guides for compatible alternatives. Verify pin compatibility and electrical specifications if considering cross-brand replacements. Ensure any substitute part meets the same frequency, output format, and environmental requirements.
