SK10100D2

Single Diodes Overview

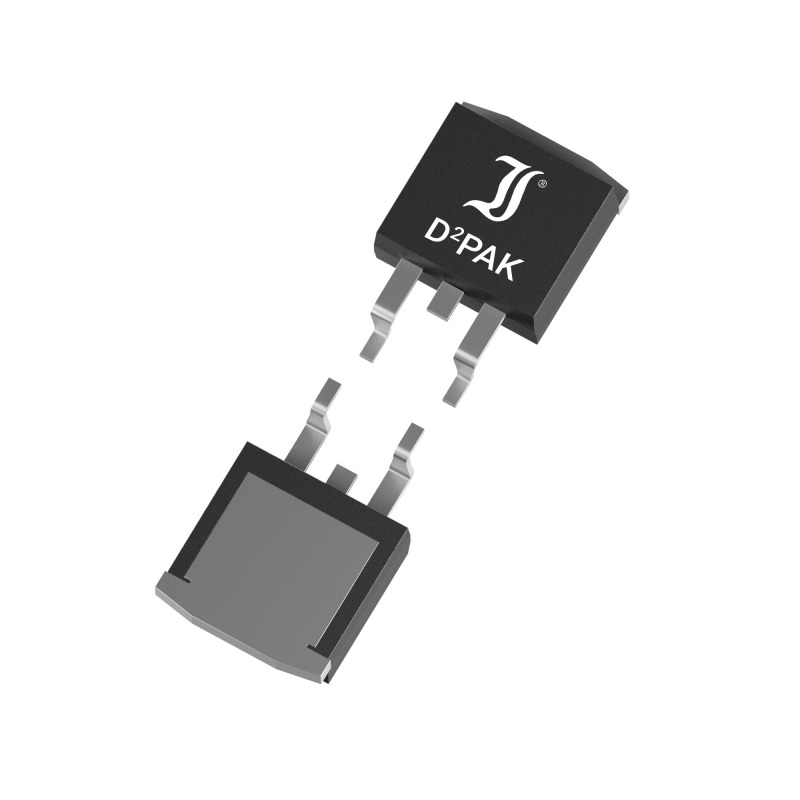

The SK10100D2 is a surface-mount Schottky barrier rectifier diode manufactured by Diotec Semiconductor. It features a single diode configuration in a D2PAK-3 (TO-263AB) package. The device supports an average forward current of 10 A and a maximum repetitive peak reverse voltage of 100 V. Key electrical characteristics include a maximum forward voltage of less than 0.74 V at 10 A and 25°C, and a typical junction capacitance of 300 pF at 4 V and 1 MHz. The component operates within a junction temperature range of -50°C to +150°C.

Single Diodes Feature Summary

• Utilizes Schottky barrier technology for low forward voltage drop and high switching efficiency.
• Designed with a robust D2PAK-3 plastic package suitable for surface mount applications.
• Engineered for high thermal performance with a typical thermal resistance of 1.5 K/W from junction to case.

Single Diodes Applications

• General purpose rectification in industrial power supplies
• DC-DC converter circuits requiring high current handling
• Free-wheeling diodes in motor drive systems

Single Diodes Procurement Notes

Verify the specific ordering suffix against official Diotec documentation to confirm exact electrical tolerances and packaging details. Ensure compliance with RoHS directives if required by your manufacturing standards. Confirm that the D2PAK-3 footprint matches your PCB design guidelines before finalizing procurement orders.

Single Diodes Selection Notes

Select this component when a 10 A continuous current rating and 100 V blocking capability are required in a compact surface-mount form factor. Consider the low forward voltage characteristic for improved efficiency in low-voltage, high-current conversion stages. Evaluate the thermal resistance specifications to ensure adequate heat dissipation solutions are integrated into the system design.

Single Diodes Part Context

This part belongs to the SK10xxD2 series of SMD Schottky Barrier Rectifiers from Diotec Semiconductor. The series covers various voltage ratings while maintaining a consistent 10 A forward current capability across different packages. These devices are positioned as standard commercial/industrial grade components designed for general-purpose rectification tasks.

Single Diodes Replacement Considerations

Cross-reference with other manufacturers offering 10 A, 100 V Schottky rectifiers in TO-263AB packages. Verify pinout compatibility and thermal resistance values to ensure equivalent performance without redesigning the cooling infrastructure or PCB layout.

Single Diodes FAQ

What is the maximum operating junction temperature for the SK10100D2?

The maximum operating junction temperature is +150°C.

How does the forward voltage vary with temperature?

The forward voltage decreases as the junction temperature increases, as shown in the typical forward characteristics curves provided in the datasheet.
