SK310BFL-TP is listed in the Single Diodes range at ChipApex. The manufacturer field lists MCC (Micro Commercial Components). Its product description is DIODE SCHOTTKY 100V 3A SMBF. Review the specifications below when checking this part for your BOM.
Single Diodes specifications for SK310BFL-TP
- Description：DIODE SCHOTTKY 100V 3A SMBF
- Series：-
- Mfr：MCC (Micro Commercial Components)
- Package：Tape & Reel (TR)
- Technology：Schottky
- Voltage - DC Reverse (Vr) (Max)：100 V
- Current - Average Rectified (Io)：3A
- Voltage - Forward (Vf) (Max) @ If：850 mV @ 3 A
- Speed：Fast Recovery =< 500ns, > 200mA (Io)
- Reverse Recovery Time (trr)：-
- Current - Reverse Leakage @ Vr：10 µA @ 100 V
- Capacitance @ Vr, F：-
- Mounting Type：Surface Mount

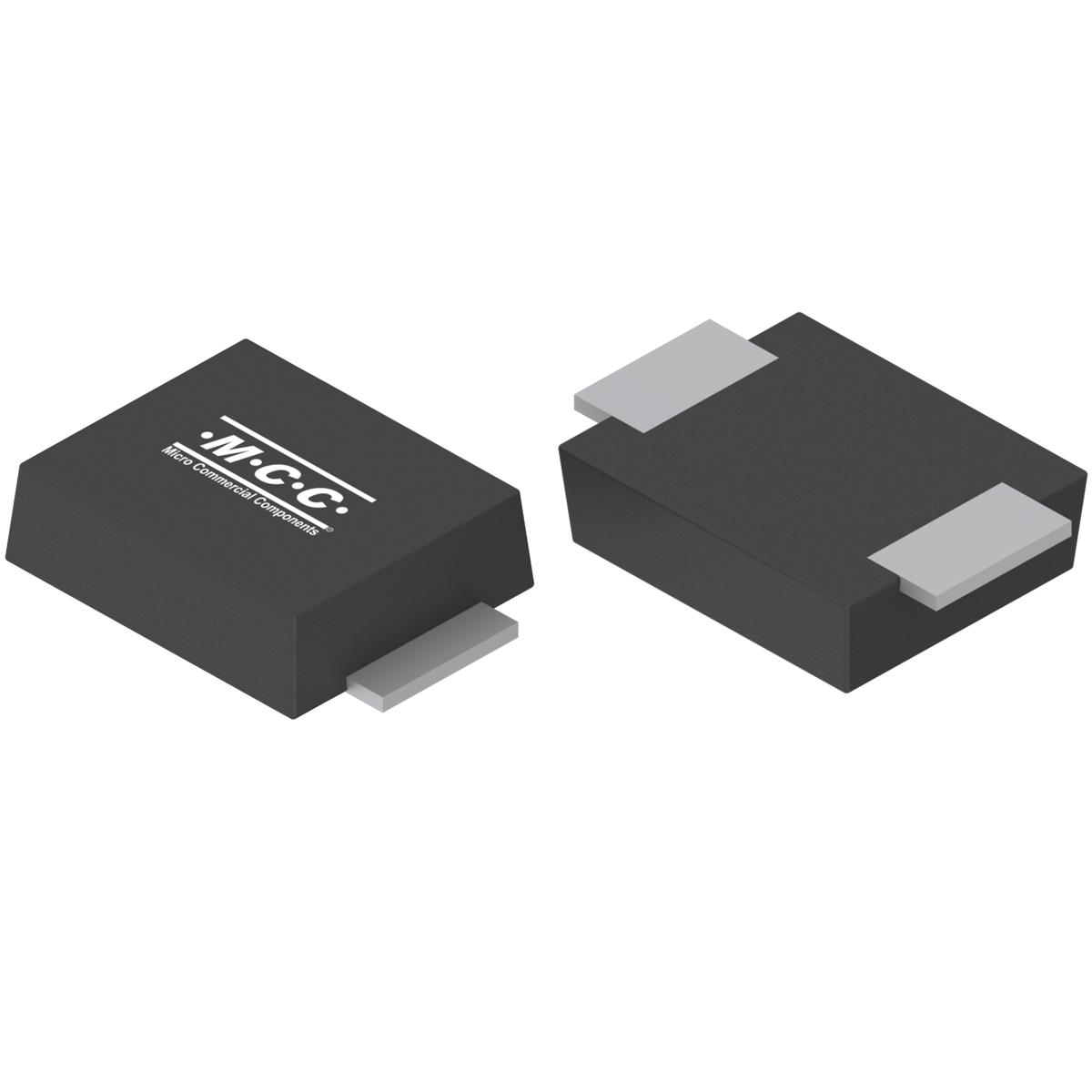

- Package / Case：DO-221AA, SMB Flat Leads
- Supplier Device Package：SMBF
- Operating Temperature - Junction：-55°C ~ 150°C
- Grade：-
- Qualification：-
Single Diodes datasheet and documents for SK310BFL-TP
Single Diodes Overview
The SK310BFL-TP is a Schottky barrier rectifier manufactured by Micro Commercial Components. It features an average forward current of 3 A and a maximum repetitive reverse voltage of 100 V. The device utilizes the SMBF surface-mount package, also known as DO-221AA. Key electrical characteristics include a maximum forward voltage of 850 mV at 3 A and a reverse leakage current of 10 µA at 100 V. The component operates within a junction temperature range of -55°C to +150°C.
Single Diodes Feature Summary
- Schottky technology ensures low forward voltage drop for improved efficiency
- High surge current capability supports transient load conditions
- Surface-mount SMBF package facilitates automated PCB assembly
Single Diodes Applications
- DC-to-DC converter output rectification
- Free-wheeling diodes in low-voltage power supplies
- Polarity protection circuits in electronic systems
Single Diodes Procurement Notes
Verify the specific suffix against official manufacturer documentation to confirm exact electrical tolerances and packaging configurations. Ensure compatibility with RoHS3 standards if required by your design specifications. Cross-reference datasheet parameters with your system requirements before finalizing procurement decisions.
Single Diodes Selection Notes
Select this component when a 100 V rating and 3 A continuous current are required in a compact surface-mount form factor. Consider the thermal management capabilities inherent to the SMBF package for your specific heat dissipation needs. Evaluate the forward voltage characteristics against your efficiency targets.
Single Diodes Part Context
This part belongs to the SL310BFL/SK310BFL series of Schottky rectifiers from Micro Commercial Components. The series offers various voltage ratings within the same physical footprint, allowing for design flexibility. The SMBF package provides a balance between current handling capacity and board space optimization for consumer and industrial electronics.
Single Diodes Replacement Considerations
Direct substitutes include other 100 V, 3 A Schottky rectifiers in the SMBF/DO-221AA package. Verify pinout compatibility and thermal resistance values when considering alternatives from different manufacturers.
