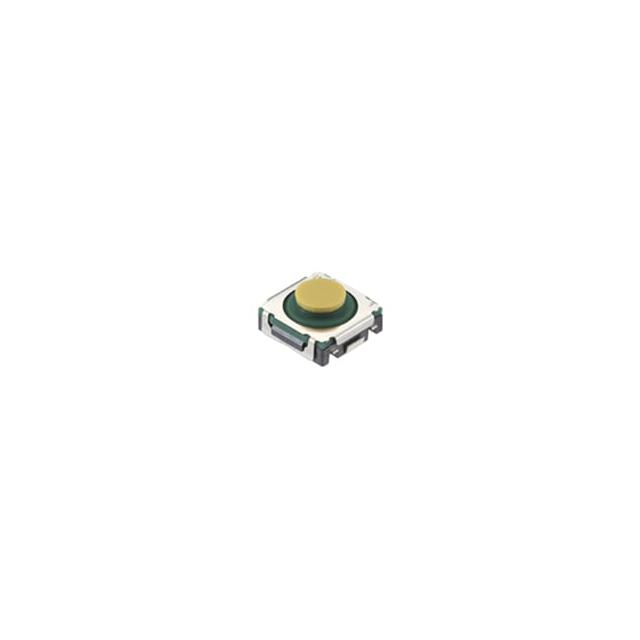

SKSTACE010

SKSTACE010 is listed in the Tactile Switches range at ChipApex. The manufacturer field lists Alps Alpine. Its product description is SWITCH TACTILE SPST-NO 0.05A 16V. Review the specifications below when checking this part for your BOM.

Tactile Switches specifications for SKSTACE010

• Description：SWITCH TACTILE SPST-NO 0.05A 16V
• Series：SKST
• Mfr：Alps Alpine
• Package：Tape & Reel (TR),Cut Tape (CT)
• Circuit：SPST-NO
• Switch Function：Off-Mom
• Contact Rating @ Voltage：0.05A @ 16VDC
• Actuator Type：Standard
• Mounting Type：Surface Mount
• Actuator Height off PCB, Vertical：3.95mm
• Actuator Length, Right Angle：-
• Actuator Orientation：Top Actuated
• Termination Style：J Lead
• Outline：8.50mm x 8.50mm
• Illumination：Non-Illuminated
• Illumination Type, Color：-
• Illumination Voltage (Nominal)：-
• Operating Force：714gf
• Ingress Protection：-
• Features：-
• Operating Temperature：-40°C ~ 90°C

Tactile Switches datasheet and documents for SKSTACE010
