SL 1 104 15 S

Headers, Male Pins Overview

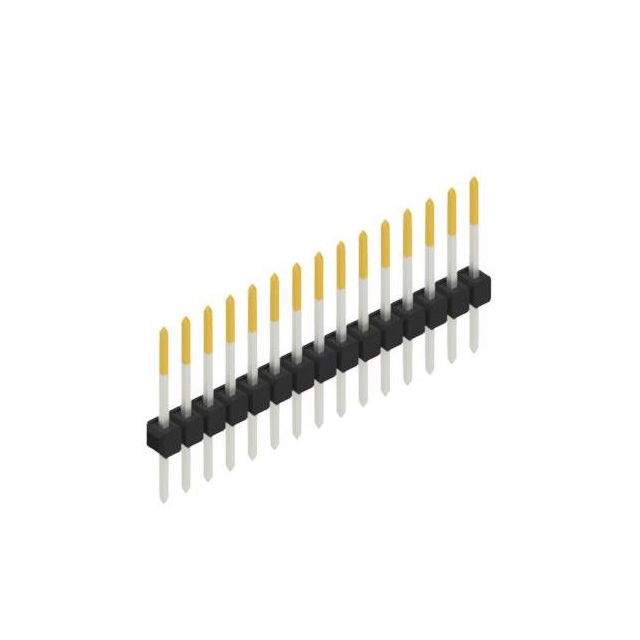

The Fischer Elektronik SL 1 104 15 S is a single-row male pin header connector designed for through-hole mounting on printed circuit boards. It features a 2.54 mm pitch and provides 15 contacts. The connector utilizes a CuSn-alloy contact material with selective gold plating on the mating surface and nickel plus tin plating on the contact sleeve. It operates within a temperature range of -40°C to +163°C and withstands soldering conditions of 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male header configuration for board-to-board or wire-to-board connections
• Selective gold-plated mating surfaces ensuring reliable electrical conductivity
• Through-hole straight mounting style compatible with standard PCB layouts

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring secure interconnects
• Industrial control systems utilizing standard 2.54 mm spacing
• Consumer electronics manufacturing processes

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact plating specifications, as variations exist within the SL 1 series. Ensure the selected variant matches the required environmental operating temperatures and soldering thermal profiles for your specific application constraints.

Headers, Male Pins Selection Notes

Select this component when a robust, single-row interconnect solution is needed for high-reliability applications. The gold-plated contacts offer superior corrosion resistance compared to tin-only variants. Confirm that the 15-position count and 2.54 mm pitch align with the target PCB footprint and mating connector requirements.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 1 series, which offers various pole counts and contact configurations. The series is characterized by its standardized 2.54 mm pitch and durable construction suitable for demanding industrial environments. It serves as a fundamental passive interconnect element within larger electronic subsystems.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers in the SL 1 series with identical pitch and row count but different contact numbers. Cross-brand replacements must match the 2.54 mm pitch, through-hole mounting type, and single-row male pin configuration to ensure mechanical compatibility.
