SL 1 154 20 Z

Headers, Male Pins Overview

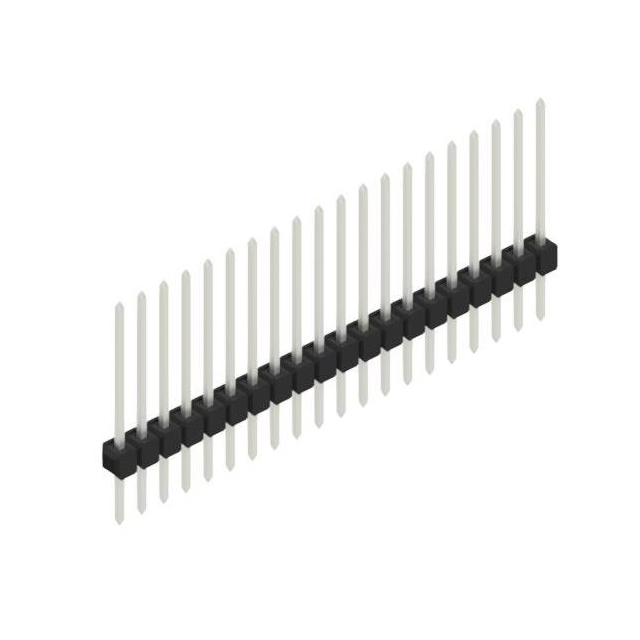

The SL 1 154 20 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 0.635 mm (0.025 inch) contact pitch and accommodates 20 positions. The connector utilizes through-hole termination for secure PCB mounting. Contact surfaces are tin-plated copper alloy, providing reliable electrical conductivity. The overall design supports standard board-to-board or wire-to-board interconnection applications requiring precise alignment and stable mechanical retention.

Headers, Male Pins Feature Summary

• Single-row configuration with 0.635 mm precision pitch
• Tin-plated copper alloy contacts for corrosion resistance
• Through-hole mounting for robust PCB attachment

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board signal routing
• General electronic assembly prototyping

Headers, Male Pins Procurement Notes

Verify the specific part number against official Fischer Elektronik documentation to confirm contact count and pitch specifications. Ensure compatibility with mating female connectors regarding pin size and insulation height. Check for any updated environmental compliance certifications required for your specific manufacturing region before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row connection is required with fine 0.635 mm spacing. Consider the tin plating for general-purpose use where gold plating is not strictly necessary for high-cycle mating. Evaluate the through-hole footprint requirements against your PCB design constraints to ensure adequate solder joint reliability and mechanical strength during operation.

Headers, Male Pins Part Context

This component belongs to the Fischer Elektronik SL series of precision PCB connectors. The series offers various row counts and pitch options tailored for different density requirements. The SL 1 154 variant specifically addresses needs for compact, single-row layouts with standardized through-hole processing capabilities common in industrial and consumer electronics manufacturing.

Headers, Male Pins Replacement Considerations

No direct public substitute part numbers are confirmed in available documentation. Verify cross-compatibility with other manufacturers' 0.635 mm pitch headers based on mechanical dimensions and electrical ratings rather than assuming interchangeability.
