SL 1 179 32 Z

Headers, Male Pins Overview

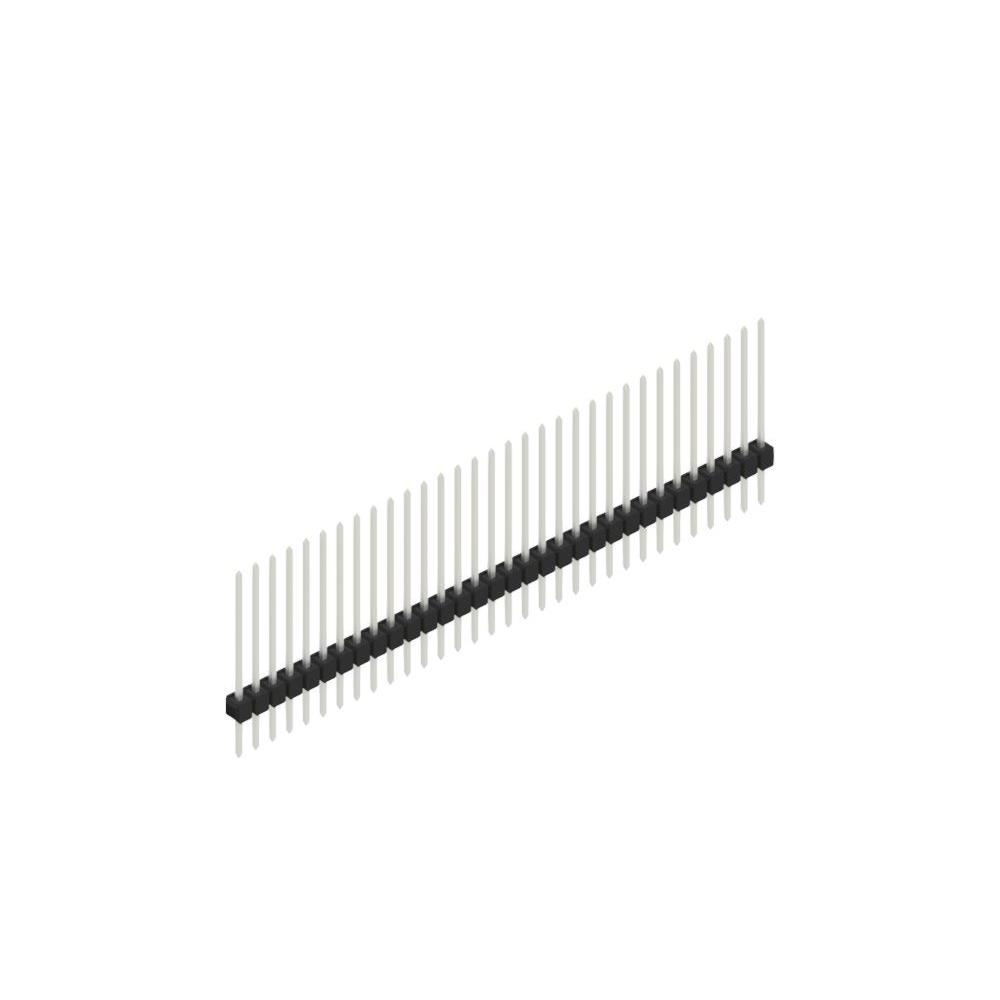

The SL 1 179 32 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features a through-hole mounting style with 32 positions and a pitch of 0.635 mm (0.100 inches or 2.54 mm). The connector utilizes square-shaped contacts made of copper-tin, with a tin-plated finish on the mating section. Key dimensions include a contact length for mating of 8.10 mm, a post length of 3.00 mm, and an overall contact length of 13.90 mm. The insulation height is 2.80 mm, constructed from polyamide (PA46) material.

Headers, Male Pins Feature Summary

• Single-row configuration designed for precise electronic interconnection applications
• Through-hole termination method ensures secure PCB attachment
• Square contact shape provides stable mechanical engagement
• Polyamide insulation material offers structural integrity

Headers, Male Pins Applications

• General-purpose electronic circuit board interconnections
• Precision engineering assemblies requiring specific pitch alignment
• Industrial control system hardware integration

Headers, Male Pins Procurement Notes

Verify the exact part number against official Fischer Elektronik documentation to ensure compatibility with required pitch and row configurations. Confirm that the tin-plated contact finish meets the environmental and conductivity requirements of the target application. Cross-reference the through-hole mounting specifications with the printed circuit board design to guarantee proper fit and electrical performance.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 0.635 mm pitch is required for through-hole assembly. Ensure the 32-position count aligns with the circuit design needs. Consider the tin-plated contact finish for standard conductivity requirements and verify that the polyamide insulation material is suitable for the operating temperature range. Compare physical dimensions against available space constraints on the target PCB layout.

Headers, Male Pins Part Context

This component belongs to the SL 1 series of male pin headers from Fischer Elektronik. The series is characterized by precision-engineered connectors designed for reliable electronic connections. The specific model indicates a single-row arrangement with defined positional and dimensional attributes suitable for structured circuit board applications.
