SL 1 230 10 G

Headers, Male Pins Overview

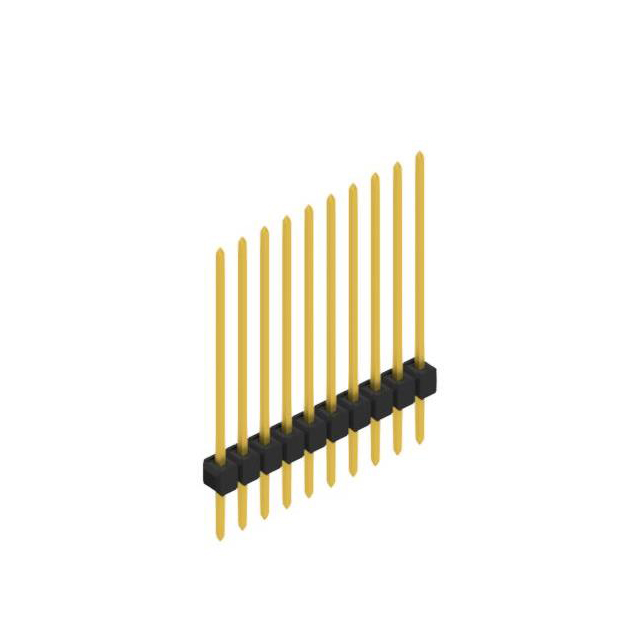

The SL 1 230 10 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row of ten positions with a 0.100-inch (2.54 mm) pitch. The component is designed for through-hole mounting on printed circuit boards. The housing utilizes black polyamide material, providing structural integrity and electrical insulation. This specific variant includes gold-plated contacts to ensure reliable signal transmission and corrosion resistance in electronic assemblies.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections
• Through-hole termination method ensuring secure mechanical attachment
• Polyamide housing construction for durable insulation and stability

Headers, Male Pins Applications

• General purpose PCB interconnects
• Signal routing in electronic modules
• Prototype development circuits

Headers, Male Pins Procurement Notes

Verify the exact contact plating thickness and housing color against the official datasheet before ordering. Confirm that the through-hole pad layout matches your PCB design requirements. Ensure compatibility with mating female headers regarding pitch and row count. Check for any specific RoHS compliance documentation if required for your manufacturing process.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with ten pins is required. Consider the 2.54 mm pitch for standard spacing needs. Evaluate the through-hole mounting style against surface-mount alternatives based on assembly capabilities. Assess the environmental conditions to determine if gold plating is necessary for long-term reliability.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 1 series of male headers. The series offers various pin counts while maintaining consistent pitch and mounting characteristics. The SL 1 designation indicates a single-row configuration. The numeric suffix denotes the specific number of positions available within this product line.

Headers, Male Pins Replacement Considerations

Compatible substitutes must match the 2.54 mm pitch, single-row format, and ten-pin count. Verify that alternative manufacturers offer through-hole termination and similar housing materials. Ensure dimensional compatibility with existing PCB footprints and mating connectors.
