SL 10 SMD 040 17 Z SM

Headers, Male Pins Overview

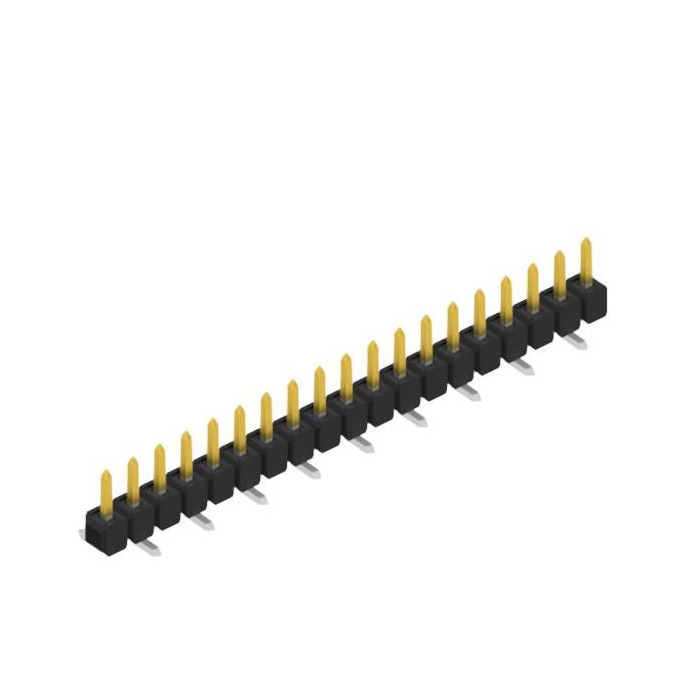

The SL 10 SMD 040 17 Z SM is a surface mount board connector manufactured by Fischer Elektronik. It features 17 male contacts arranged in a single row with a 2.54 mm (0.100 inch) pitch. The component utilizes tin-plated terminals for reliable electrical connection and is designed for straight mounting on printed circuit boards. The connector supports push-pull fastening mechanisms to ensure secure attachment during operation.

Headers, Male Pins Feature Summary

• Surface mount technology design for automated assembly processes
• Tin-plated contact surfaces ensuring corrosion resistance
• Push-pull fastening mechanism for secure board retention

Headers, Male Pins Applications

• General electronic interconnections
• Industrial control systems
• Consumer electronics assemblies

Headers, Male Pins Procurement Notes

Verify the specific suffix 'SM' indicates bar magazine packaging when ordering. Confirm that the tin-plated finish matches application requirements regarding solderability and environmental exposure. Ensure the 17-position configuration aligns with the target circuit board footprint and mating connector specifications before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row header is required for surface mount applications. The tin plating offers cost-effective conductivity suitable for general-purpose environments. Consider the 2.54 mm pitch compatibility with standard mating connectors and verify that the push-pull locking feature meets the mechanical stability needs of the assembly.

Headers, Male Pins Part Context

This part belongs to the SL 10 SMD series from Fischer Elektronik, which provides compact rectangular connectors for surface mount technology. The series is characterized by its small form factor and reliability in dense PCB layouts. The SL 10 variant specifically denotes the housing style and pin count range within the broader product family.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 17-pin count, 2.54 mm pitch, and surface mount termination. Verify that alternative components support the same push-pull fastening method and tin-plated contact finish to maintain interface compatibility.
