SL 10 SMD 130 18 Z

Headers, Male Pins Overview

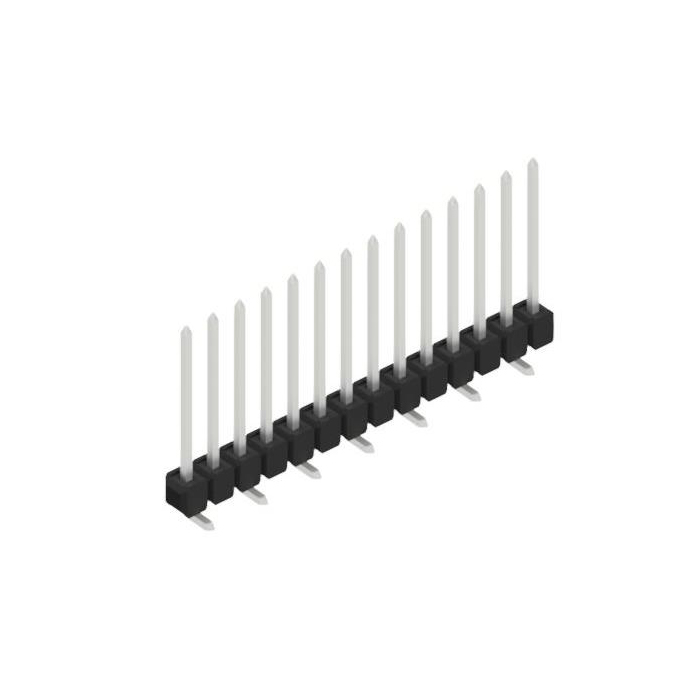

The SL 10 SMD 130 18 Z is a board connector manufactured by Fischer Elektronik, designed for surface mount terminal applications. It features a male contact configuration with one row and eighteen contacts. The connector utilizes a straight mounting style and incorporates a staggered configuration for its pins. The component is lead-free and RoHS compliant, adhering to JESD-609 code e3 standards. Contact finishes are specified as tin-plated for both mating and termination interfaces. The product belongs to the SL series, characterized by a 2.54 mm pitch spacing.

Headers, Male Pins Feature Summary

• Surface mount design for direct PCB integration
• Male header configuration with staggered pin arrangement
• Tin-plated contact surfaces for reliable connectivity
• Lead-free construction compliant with environmental standards

Headers, Male Pins Applications

• Board-to-board interconnection systems
• Wire-to-board assembly requirements
• Electronic device internal circuit connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' confirms tin plating rather than gold or silver variants. Confirm the contact count matches the '18' designation in the model number. Ensure the surface mount package type aligns with pick-and-place or bar magazine handling capabilities if automated assembly is required. Cross-reference the manufacturer part number against current distributor listings to ensure availability of the exact specification.

Headers, Male Pins Selection Notes

Select this component when a surface mount male header with eighteen positions is required. The 2.54 mm pitch is standard for general-purpose electronics. Consider the staggered configuration if space constraints or specific mating connector profiles necessitate offset pin alignment. Tin plating offers cost-effective conductivity suitable for non-high-frequency applications. Verify insulation material compatibility with soldering temperatures during the reflow process.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 10 SMD 130 series, which encompasses various contact counts and plating options. The series provides flexible solutions for surface mount board connectors. Variations within the series typically differ by contact quantity and terminal finish. This specific model represents the eighteen-contact variant with tin plating, fitting into the broader portfolio of industrial and consumer electronic interconnect solutions.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik models from the same SL 10 SMD 130 series with identical contact counts and plating. Generic replacements must match the 2.54 mm pitch, surface mount footprint, and male pin configuration. Verify that alternative manufacturers offer staggered pin layouts if mechanical compatibility with existing mating connectors is critical.
