SL 11 097 10 G

Headers, Male Pins Overview

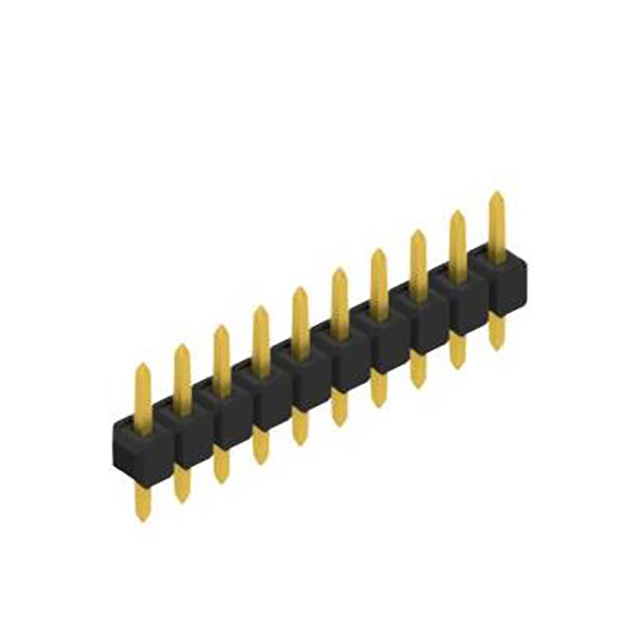

The SL 11 097 10 G is a male header connector from the Fischer Elektronik SL 11 series, designed for through-hole mounting on printed circuit boards. It features a single row with 10 contacts and a standard pitch of 2.54 mm (0.100 inches). The contact material is a copper alloy, plated with nickel and gold to ensure reliable electrical performance. This component supports soldering temperatures up to 260°C for 10 seconds and meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Precision-engineered male header with a compact form factor suitable for dense PCB layouts
• Gold-plated contacts provide high corrosion resistance and stable signal transmission
• Thermal stability rated for reflow soldering at 260°C for 10 seconds
• Constructed with flame-retardant insulation meeting UL 94 V-0 requirements

Headers, Male Pins Applications

• Industrial control systems requiring robust signal interconnects
• Consumer electronics utilizing standard 2.54 mm pitch interfaces
• Automotive electronic modules needing reliable through-hole connections
• Test and measurement equipment headers

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the required gold plating specification, as Fischer Elektronik uses distinct suffixes for different contact finishes such as tin or silver. Confirm that the 10-position count matches the design requirement, noting that other variants in the SL 11 097 series offer different pin counts. Ensure the through-hole technology compatibility aligns with the manufacturing process, as surface-mount alternatives exist within the broader product family.

Headers, Male Pins Selection Notes

Select this component when a gold-plated male header is necessary for low-resistance signal applications. The 2.54 mm pitch is industry-standard, ensuring compatibility with mating female connectors. Consider the thermal rating of 260°C if using automated reflow soldering processes. Verify that the physical dimensions fit the available board space, as the SL 11 series offers various heights and lengths depending on the contact count.

Headers, Male Pins Part Context

The SL 11 097 series represents a line of precision male headers manufactured by Fischer Elektronik. These connectors are characterized by their standardized 2.54 mm pitch and robust construction for general-purpose electronic interconnections. The series includes multiple variations differing in contact count, plating materials, and insulation properties, allowing engineers to tailor the connection solution to specific environmental and electrical demands.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Fischer Elektronik SL 11 series headers with identical 10-pin configurations and gold plating. Generic equivalents with 2.54 mm pitch male headers should be evaluated for mechanical fit and electrical ratings. Verify that any replacement part maintains the same UL 94 V-0 rating and thermal withstand capabilities to ensure system reliability.
