SL 11 097 10 S

Headers, Male Pins Overview

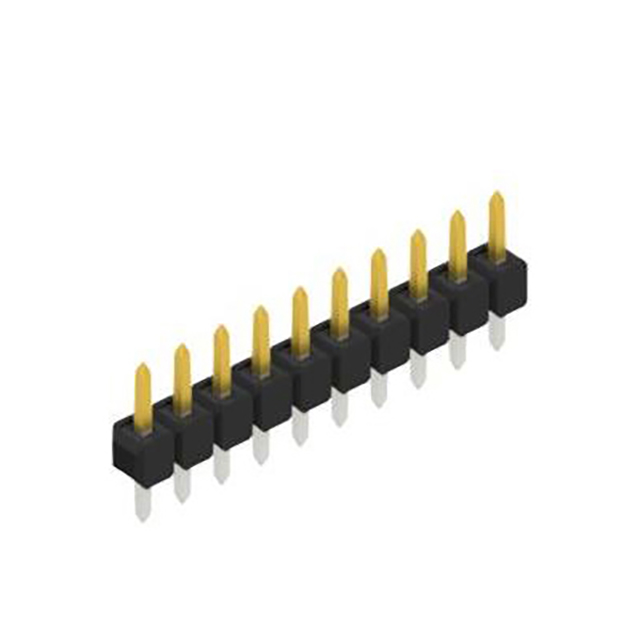

The Fischer Elektronik SL 11 097 10 S is a single-row, through-hole pin header connector featuring 10 positions with a 2.54 mm (0.100 inch) pitch. It utilizes square male pins with tin plating over nickel. The connector is designed for PCB mounting and supports operating temperatures from -40°C to +163°C, with soldering capability at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row configuration for compact circuit board integration
• Through-hole mounting for secure mechanical stability
• Tin-plated contacts for reliable electrical conductivity

Headers, Male Pins Applications

• General-purpose electronic assemblies
• Industrial control systems
• Consumer electronics hardware

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against official Fischer Elektronik documentation to confirm contact plating specifications. Ensure compatibility with mating connectors regarding pin dimensions and pitch. Confirm RoHS compliance status if required by project regulations before finalizing procurement.

Headers, Male Pins Selection Notes

Select this component when a low-profile, single-row interconnect solution is required. Consider the thermal rating of +163°C for high-temperature environments. Verify that the 10-position count matches the design requirements and that through-hole technology aligns with the manufacturing process.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various position counts and plating options. The SL 11 097 10 S specifically denotes a 10-position variant within this standardized connector family, designed for general electronic interconnection needs.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 10-position count, and single-row form factor. Verify that alternative components support the same through-hole mounting style and compatible operating temperature range. Cross-reference manufacturer datasheets for dimensional accuracy.
