SL 11 097 10 Z

Headers, Male Pins Overview

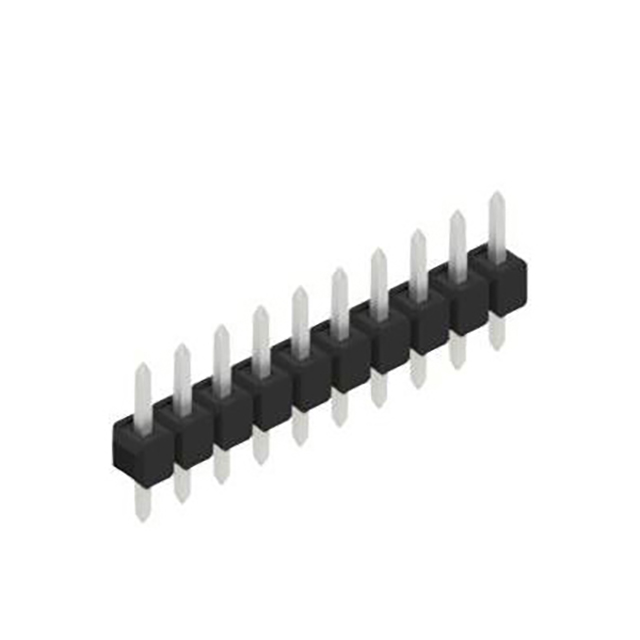

The SL 11 097 10 Z is a single-row, through-hole pin header manufactured by Fischer Elektronik. It features 10 contacts with a 2.54 mm (0.100 inch) pitch. The connector utilizes square male pins made of copper-tin alloy, plated with tin on both the mating and column sections. The insulating body is constructed from PA 4.6 glass fiber reinforced nylon. Key electrical ratings include a nominal current of 3 A, a nominal voltage of 250 V AC, and a test voltage of 2000 V. The volume resistance is specified as ≤5 mΩ.

Headers, Male Pins Feature Summary

• Precision-engineered straight pin header designed for reliable board-to-board or wire-to-board connections.
• Constructed with PA 4.6 GF insulating material to ensure high thermal stability and mechanical strength.
• Features tin-plated copper-tin contacts providing consistent conductivity and corrosion resistance.
• Designed for through-hole mounting to secure PCB integration.

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies
• Wire-to-board connections for signal transmission
• General-purpose PCB header applications requiring 2.54 mm spacing

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 097 10 Z against official Fischer Elektronik documentation to confirm contact count and plating specifications. Ensure compatibility with standard 2.54 mm pitch sockets or wires. Check for RoHS compliance status if required by project regulations. Confirm that the through-hole mounting style matches the target PCB design constraints.

Headers, Male Pins Selection Notes

Select this component when a 10-position, single-row header is required for 2.54 mm pitch applications. Consider the 3 A current rating and 250 V AC voltage limit for circuit safety. The PA 4.6 insulation offers suitable performance for standard operating temperatures. Verify that the square pin shape aligns with the mating connector's socket geometry to ensure proper alignment and retention.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of pin headers from Fischer Elektronik. The series is characterized by its use of PA 4.6 GF insulation and tin-plated contacts. Similar models in the series vary primarily by the number of positions, such as the SL 11 097 5 Z or SL 11 097 1 Z, allowing for scalable connectivity options within the same form factor and electrical specification framework.

Headers, Male Pins Replacement Considerations

No public confirmed substitute part numbers are available in the provided data. Generic equivalents may exist but require independent verification of pin pitch, current rating, and insulation material compatibility.

Headers, Male Pins FAQ

What is the insulating material used for the SL 11 097 10 Z?

The insulating body is made of PA 4.6 glass fiber reinforced nylon.

What are the electrical ratings for this pin header?

It supports a nominal current of 3 A, a nominal voltage of 250 V AC, and a test voltage of 2000 V.
