SL 11 097 11 G

Headers, Male Pins Overview

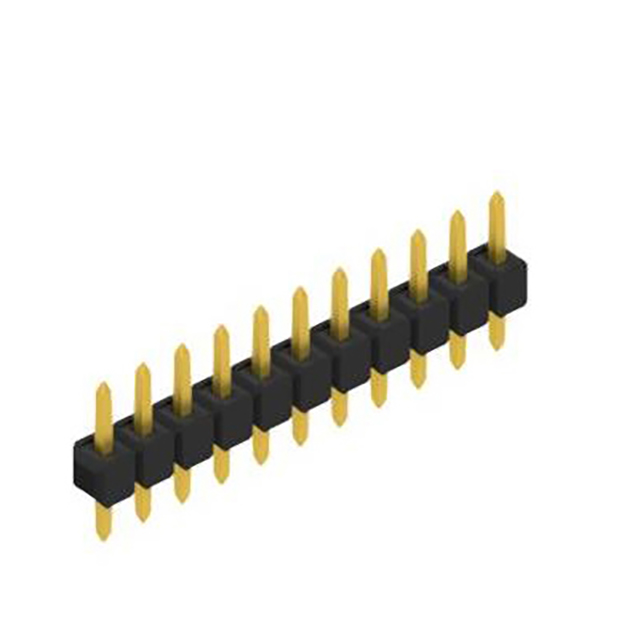

The SL 11 097 11 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 11 contacts and a standard pitch of 2.54 mm (0.100 inches). The component utilizes through-hole mounting for secure PCB attachment. Contact surfaces are tin-plated to ensure reliable electrical conductivity. The housing is constructed from black polyamide material, providing structural integrity and insulation.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for board-to-board or wire-to-board connections
• Through-hole termination method ensuring stable mechanical fixation on printed circuit boards
• Tin-plated contact surfaces designed for effective signal transmission and corrosion resistance

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring standardized interconnects
• Industrial control systems utilizing modular PCB architectures
• Consumer electronics manufacturing involving signal routing between circuit layers

Headers, Male Pins Procurement Notes

Verify the specific contact count matches the required circuit design before integration. Confirm that the through-hole footprint aligns precisely with the target PCB layout dimensions. Ensure the tin plating specification meets the environmental conditions of the final application. Cross-reference the datasheet for thermal reflow limits to prevent component damage during soldering processes.

Headers, Male Pins Selection Notes

Choose this model when a single-row, 11-position header is necessary for low-current signal applications. The 2.54 mm pitch ensures compatibility with standard breadboard and prototyping systems. Consider the straight orientation for vertical stacking or space-constrained horizontal layouts. Validate that the polyamide housing rating suits the operating temperature range of the intended environment.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of connectors produced by Fischer Elektronik. The series offers various pin counts and configurations to support diverse electronic interconnection needs. The SL 11 097 variant specifically denotes the housing style and contact arrangement within this product line, focusing on reliable through-hole performance.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other Fischer Elektronik headers with identical 2.54 mm pitch and 11 positions. Generic equivalents must match the through-hole pin diameter and overall height constraints. Verify that alternative suppliers provide comparable tin plating thickness and polyamide insulation quality.
