SL 11 097 11 S

Headers, Male Pins Overview

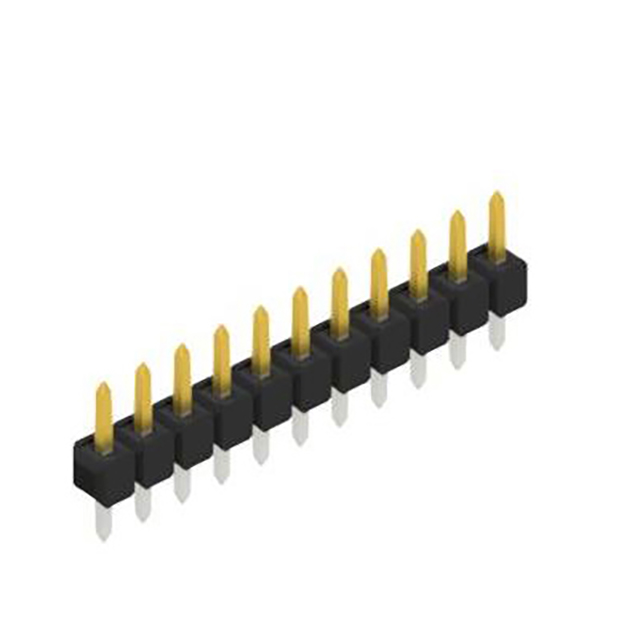

The SL 11 097 11 S is a single-row male pin header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 11 positions. The component utilizes through-hole mounting technology for PCB integration. Contact materials are specified as copper with tin plating, providing reliable electrical connectivity. The housing is constructed from polyamide (PA46), offering mechanical stability and thermal resistance suitable for standard surface mount processes.

Headers, Male Pins Feature Summary

• Single-row configuration designed for board-to-board or wire-to-board interconnections
• Through-hole termination method ensures secure mechanical attachment to printed circuit boards
• Polyamide insulation material provides structural integrity and environmental resistance

Headers, Male Pins Applications

• General-purpose electronic assembly requiring standardized 2.54mm spacing
• Prototyping stages utilizing breadboard-compatible or socket-mated interfaces
• Industrial control modules needing robust through-hole signal transmission

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's current datasheet to confirm exact contact plating specifications and dimensional tolerances. Ensure compatibility with mating sockets regarding insertion depth and row alignment. Cross-reference the official Fischer Elektronik documentation for any recent updates to material composition or RoHS compliance status prior to finalizing supply chain agreements.

Headers, Male Pins Selection Notes

Select this component when a single-row, 11-position male header with 2.54mm pitch is required for through-hole applications. Consider the physical dimensions of 9.7 mm length and 3.9 mm height to ensure adequate clearance within the enclosure design. Evaluate the thermal performance limits relative to the soldering process temperatures to prevent insulation damage during assembly.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series, which focuses on precision-engineered male pin headers. The series offers various pole counts and configurations to support diverse electronic interconnection needs. Components in this line are characterized by their compact footprint and reliable through-hole construction, catering to both prototyping and production environments.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 11-position count, 2.54mm pitch, and single-row through-hole format. Verify that alternative manufacturers provide identical housing dimensions and contact material specifications to maintain mechanical fit and electrical performance without redesigning the PCB layout.
