SL 11 097 12 G

Headers, Male Pins Overview

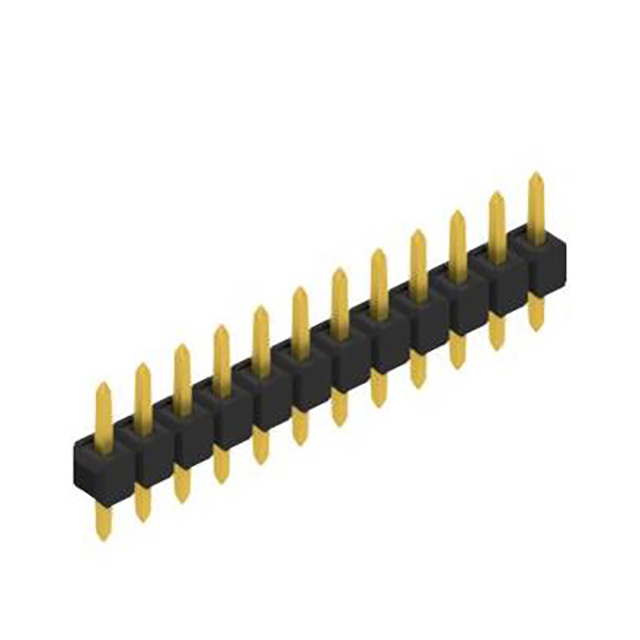

The SL 11 097 12 G is a single-row PCB header connector manufactured by Fischer Elektronik. It features 12 positions with a 0.100 inch (2.54 mm) pitch. The contacts are gold-plated copper-tin pins designed for through-hole mounting. The insulation material is polyamide (PA46), glass-filled nylon, providing stability across an operating temperature range of -40°C to +163°C.

Headers, Male Pins Feature Summary

• Gold-plated contact finish ensures reliable signal transmission and corrosion resistance
• Glass-filled polyamide insulation offers mechanical strength and thermal stability
• Straight pin configuration facilitates standard vertical PCB integration

Headers, Male Pins Applications

• Industrial control system interconnections
• Consumer electronics board-to-board connections
• Telecommunications equipment signal routing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' corresponds to the gold contact finish as documented in official Fischer Elektronik datasheets. Confirm that the 12-position count matches project requirements. Ensure compatibility with mating receptacles regarding pitch and row configuration before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a robust, high-temperature resistant header is required for dense circuit layouts. The glass-filled PA46 insulation supports reflow soldering processes while maintaining dimensional integrity. Consider the straight orientation for space-constrained vertical mounting scenarios.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connection systems from Fischer Elektronik. The series provides standardized male pin headers for various electronic applications. The SL 11 097 variant specifically denotes the housing style and contact arrangement within this product family.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 12 positions, and gold-plated contact specifications. Verify insulation material compatibility and operating temperature ranges to ensure functional equivalence in existing designs.
