SL 11 097 12 S

Headers, Male Pins Overview

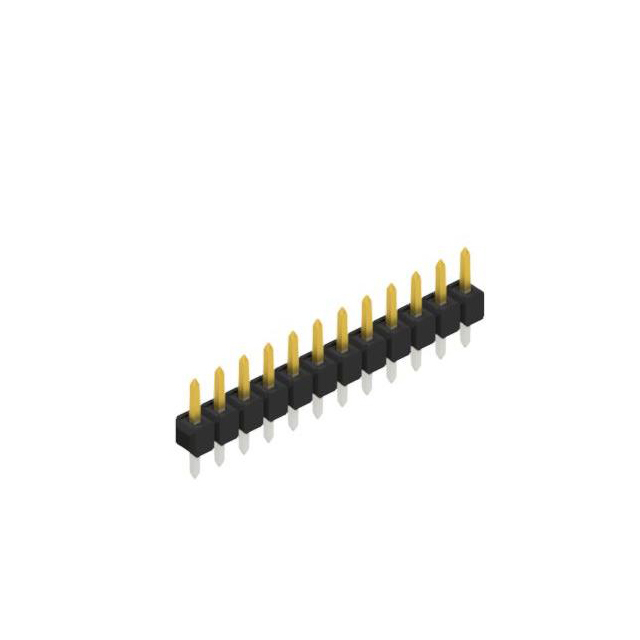

The SL 11 097 12 S is a male pin header connector from the Fischer Elektronik SL 11 series. It features a single row with 12 positions and a 2.54 mm pitch. The connector utilizes through-hole mounting with square contacts made of copper-tin, plated with tin for mating surfaces. The insulating body is constructed from PA 4.6 GF material, rated UL 94 V-0, supporting a temperature range of -40°C to +163°C and a test voltage of 2000 V.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration with 12 positions
• Through-hole mounting design with square contact geometry
• PA 4.6 GF insulating body with UL 94 V-0 flammability rating
• Tin-plated copper-tin contacts for reliable electrical connection

Headers, Male Pins Applications

• General PCB interconnection systems
• Electronic assembly requiring through-hole termination
• Industrial control circuitry connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' against official Fischer Elektronik documentation to confirm plating thickness and material specifications. Ensure compatibility with mating socket connectors regarding pitch and contact geometry. Cross-reference the part number with current datasheets to validate availability and technical parameters before procurement.

Headers, Male Pins Selection Notes

Select this component when a single-row, 12-position male header with 2.54 mm pitch is required. Consider the through-hole mounting style and PA 4.6 insulation material for thermal stability. Verify that the 2000 V test voltage and -40°C to +163°C operating range meet the application's environmental and electrical requirements.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of PCB connection systems. The series offers various pole counts and configurations for male pin headers. The SL 11 097 12 S specifically provides a compact solution for board-to-board or cable-to-board connections within electronic assemblies requiring robust through-hole termination.
