SL 11 097 13 G

Headers, Male Pins Overview

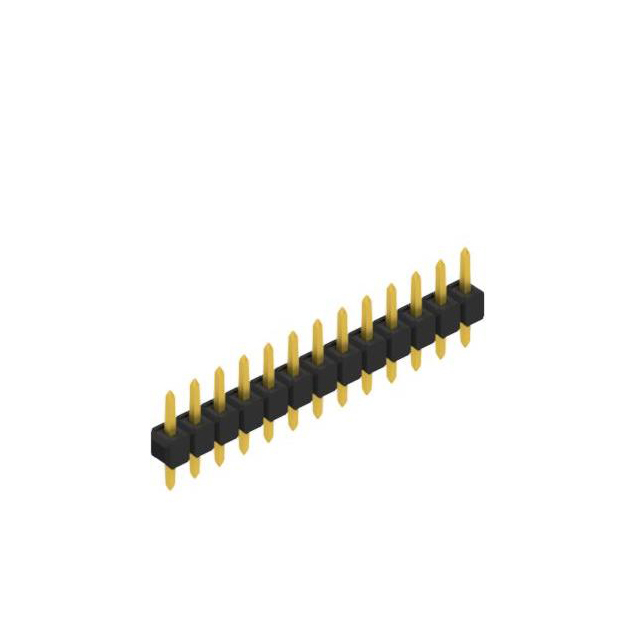

The SL 11 097 13 G is a male pin header connector from the Fischer Elektronik SL 11 series. It features a single row of 13 contacts with a 2.54 mm pitch. Designed for through-hole mounting, it supports a nominal current of 3 A and a nominal voltage of 250 V AC. The insulating body is constructed from PA 4.6 GF material, ensuring stability within an operating temperature range of -40°C to +163°C. The connector withstands a test voltage of 2000 V and maintains a volume resistance of ≤5 mΩ.

Headers, Male Pins Feature Summary

• Through-hole male pin header configuration for PCB integration
• Insulating body made of PA 4.6 GF for thermal stability
• Standard contact sleeve version with low volume resistance

Headers, Male Pins Applications

• General PCB interconnection systems
• Industrial control unit signal routing
• Electronic assembly requiring 2.54 mm spacing

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'G' against the manufacturer's official datasheet to confirm plating specifications and material variants. Ensure the required contact count matches the 13-position configuration. Cross-reference the part number with authorized distributors to confirm availability and authenticity. Check for any recent updates to the product documentation regarding environmental compliance or material changes.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 13 positions is required. The 2.54 mm pitch is standard for many electronic interfaces. Consider the 3 A current rating and 250 V voltage limit for circuit compatibility. The PA 4.6 GF insulation suits applications needing resistance up to 163°C. Verify mechanical fit and soldering process requirements before finalizing the design.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of PCB connectors. The series offers various pole counts and configurations for different connection needs. The SL 11 097 13 G specifically provides a 13-contact solution in a straight, black housing. It is designed for reliable electrical connections in compact electronic assemblies.

Headers, Male Pins Replacement Considerations

Alternative designations include SL 11 097 13 G. Verify exact dimensional and electrical compatibility before substituting with other manufacturers' headers. Ensure the replacement part matches the 2.54 mm pitch and 13-position layout.
