SL 11 097 13 S

Headers, Male Pins Overview

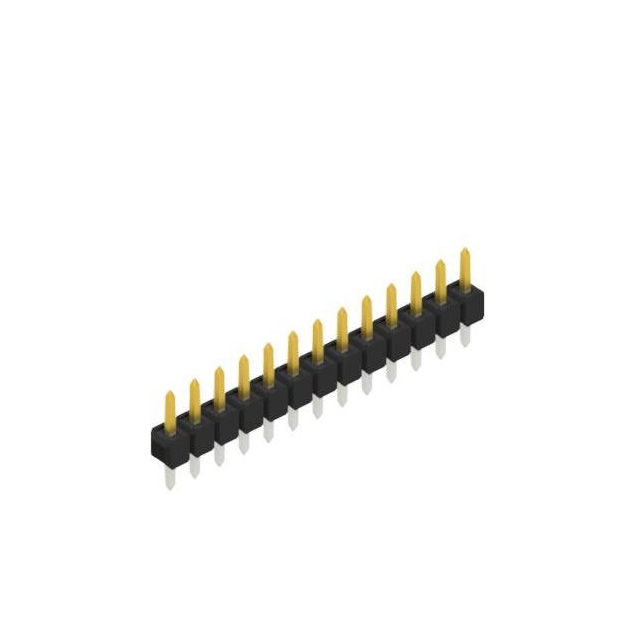

The SL 11 097 13 S is a single-row male header connector manufactured by Fischer Elektronik. It features a 2.54 mm (0.100 inch) pitch and contains 13 positions. The contacts are constructed from copper alloy with a tin plating finish, providing a contact thickness of 157.5 µin (4.00 µm). Designed for through-hole mounting, the connector supports a voltage rating of 250VAC and a current rating of 3A. The insulation material meets UL 94 V-0 flammability standards.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Single-row male pin design with square contact shape
• Tin-plated copper alloy contacts for reliable conductivity
• UL 94 V-0 rated polyamide insulation for thermal stability

Headers, Male Pins Applications

• General electronic circuit interconnections
• PCB-to-wire or PCB-to-PCB signal routing
• Industrial control panel assembly
• Consumer electronics hardware integration

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's official datasheet to confirm the exact contact plating specification and insulation material grade. Ensure the ordering quantity aligns with the distributor's standard packaging format, as this component is typically supplied in bulk reels or tubes rather than individual units. Cross-reference the pin count and pitch dimensions with the target PCB footprint to guarantee mechanical compatibility before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 13-position male header with a 2.54 mm pitch is required for through-hole applications. The tin-plated contacts offer a cost-effective solution for general-purpose signaling where high corrosion resistance is not critical. Consider alternative gold-plated variants if the application involves frequent mating cycles or harsh environmental conditions requiring enhanced contact durability and lower contact resistance.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of precision-engineered electronic connectors. The series is characterized by compact dimensions and robust construction suitable for dense PCB layouts. The SL 11 097 variant specifically denotes a housing width optimized for narrow spacing applications while maintaining standard 2.54 mm contact alignment for broad industry compatibility.

Headers, Male Pins Replacement Considerations

Direct substitutes include other Fischer Elektronik headers within the SL 11 series sharing the same 2.54 mm pitch and 13-pin count. Verify that any alternative maintains the same through-hole termination style and UL 94 V-0 insulation rating to ensure equivalent thermal and electrical performance in existing designs.
