SL 11 097 13 Z

Headers, Male Pins Overview

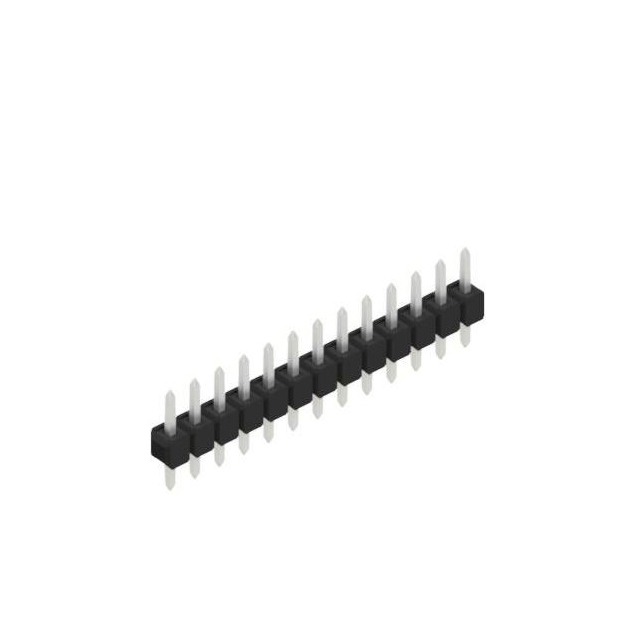

The SL 11 097 13 Z is a single-row male pin header manufactured by Fischer Elektronik. It features 13 positions with a 2.54 mm pitch. The connector utilizes tin-plated contacts and a polyamide (PA46) insulator. Key dimensions include an insertion depth of 3.30 mm, an overall contact length of approximately 13.90 mm, and an insulation height of 2.80 mm. The component is designed for through-hole mounting on PCBs.

Headers, Male Pins Feature Summary

• Single-row male header configuration for standard PCB interconnection
• Tin-plated copper alloy contacts ensuring reliable conductivity
• Polyamide (PA46) insulation material providing thermal stability

Headers, Male Pins Applications

• General purpose PCB interconnection systems
• Industrial control board signal routing
• Electronic module assembly interfaces

Headers, Male Pins Procurement Notes

Verify the specific plating thickness and material composition against the official Fischer Elektronik datasheet for the SL 11 series. Confirm that the 13-position variant matches the required mechanical footprint and insertion depth specifications for the target PCB layout to ensure proper fitment.

Headers, Male Pins Selection Notes

Select this component when a single-row, 2.54 mm pitch male header is required. Ensure the application environment remains within the specified temperature range and that the tin-plated contact finish meets the corrosion resistance requirements of the operating conditions.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of pin headers from Fischer Elektronik. The series offers various pole counts ranging from 1 to 36 contacts in a single row. The SL 11 097 13 Z specifically denotes the 13-pole version within this standardized connector family.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik documentation for direct substitutes within the SL 11 series with different pole counts. Cross-brand replacements require verification of pitch, height, and plating compatibility.
