SL 11 097 14 G

Headers, Male Pins Overview

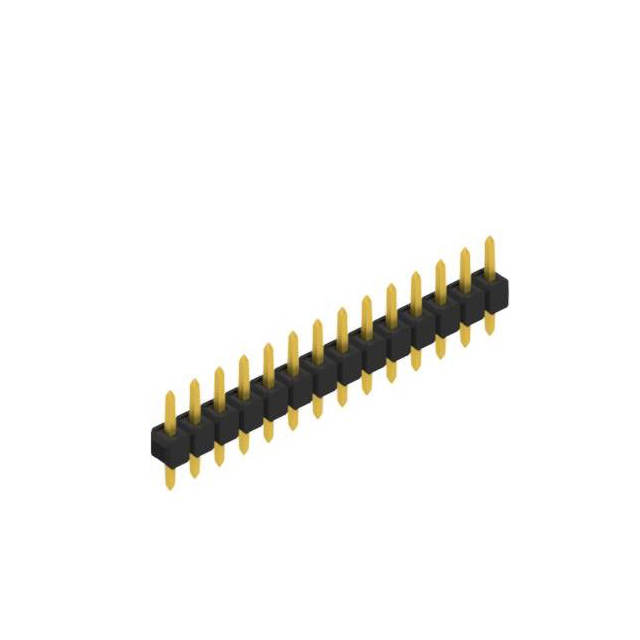

The SL 11 097 14 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 14 positions and a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, the contacts are made of copper tin with a tin plating thickness of 157.5 µin (4.00 µm). The connector utilizes a polyamide (PA46) insulator and has a square contact shape. Key dimensions include an insulation height of 0.110 inches (2.80 mm), a mating contact length of 0.319 inches (8.10 mm), and a column contact length of 0.118 inches (3.00 mm).

Headers, Male Pins Feature Summary

• Single-row male pin header configuration for PCB interconnection.
• Through-hole mounting technology with square-shaped contacts.
• Tin-plated copper tin contacts ensuring reliable conductivity.
• Polyamide (PA46) insulation material for structural stability.

Headers, Male Pins Applications

• General-purpose PCB signal and power routing.
• Interfacing between circuit boards in electronic assemblies.
• Prototyping and development board connections.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix to confirm the exact contact plating and insulation color variants available from Fischer Elektronik. Ensure the selected part matches the required current rating and voltage specifications for the target application. Cross-reference the datasheet for precise mechanical tolerances and soldering profile requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 14-position, 2.54 mm pitch male header is required for through-hole assembly. Consider the PA46 insulation and tin plating for standard environmental conditions. Evaluate the straight form factor against spatial constraints on the PCB layout. Confirm compatibility with mating female connectors regarding contact geometry and pitch accuracy.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series of PCB connection systems. The series offers various pin counts and configurations for different interconnection needs. The SL 11 097 variant specifically denotes the housing style and contact arrangement within the broader product line designed for robust electronic connectivity.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 14-pin count, 2.54 mm pitch, and through-hole mounting type. Verify that alternative manufacturers provide compatible contact materials and insulation ratings. Check mechanical dimensions for interchangeability in existing PCB footprints without redesign.

Headers, Male Pins FAQ

What is the contact material for the SL 11 097 14 G?

The contacts are made of copper tin with a tin surface finish.

Is the connector suitable for high-temperature soldering?

The datasheet specifies a peak temperature of 260°C for 10 seconds during soldering processes.
