SL 11 097 14 S

Headers, Male Pins Overview

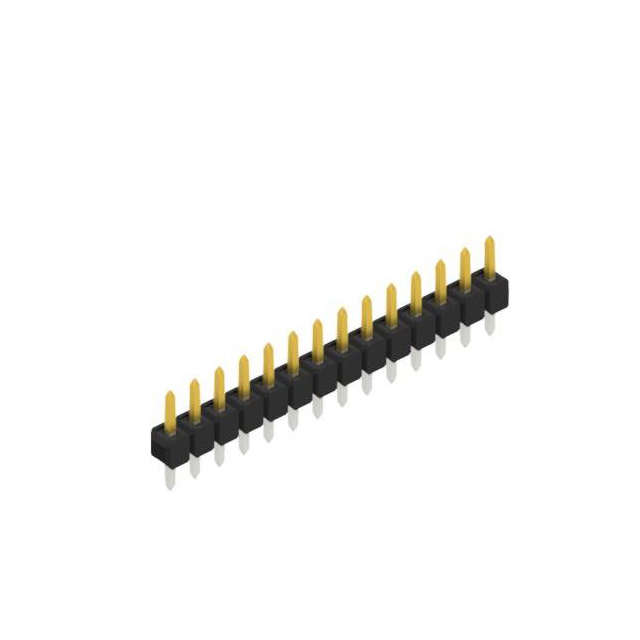

The SL 11 097 14 S is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 14 contacts and a pitch spacing of 2.54 mm (0.100 inches). The connector utilizes through-hole mounting for PCB integration. Contact materials consist of copper alloy with tin plating, providing a contact thickness of 46 µm. The insulating body is constructed from polyamide (PA46), rated for operating temperatures between -40°C and +163°C. The component supports reflow soldering at 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Single-row male pin header configuration designed for reliable board-to-board or wire-to-board connections
• Precision-engineered compact housing utilizing polyamide insulation for thermal stability
• Tin-plated copper alloy contacts ensuring consistent electrical conductivity and corrosion resistance

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• PCB assembly requiring standardized 2.54 mm pitch spacing
• Industrial control modules and consumer electronics hardware

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm contact surface treatment and material specifications. Ensure compatibility with standard reflow soldering profiles and check RoHS compliance status prior to procurement. Confirm that the 14-position count matches the design requirements.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with 2.54 mm pitch is required for through-hole PCB mounting. Consider the PA46 insulation material for applications involving moderate thermal exposure up to 163°C. Evaluate the tin-plated contact finish for general connectivity needs rather than high-frequency or harsh environmental conditions.

Headers, Male Pins Part Context

This part belongs to the Fischer Elektronik SL 11 series, which offers various configurations of male pin headers. The series provides standardized spacing options and multiple pole counts to accommodate diverse PCB layout requirements. Components in this family are designed for robust mechanical retention and stable electrical performance in standard electronic assemblies.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik documentation for direct substitutes within the SL 11 series with different pole counts or alternative contact finishes. Verify dimensional compatibility and pitch spacing before considering cross-manufacturer alternatives.
