SL 11 097 14 Z

Headers, Male Pins Overview

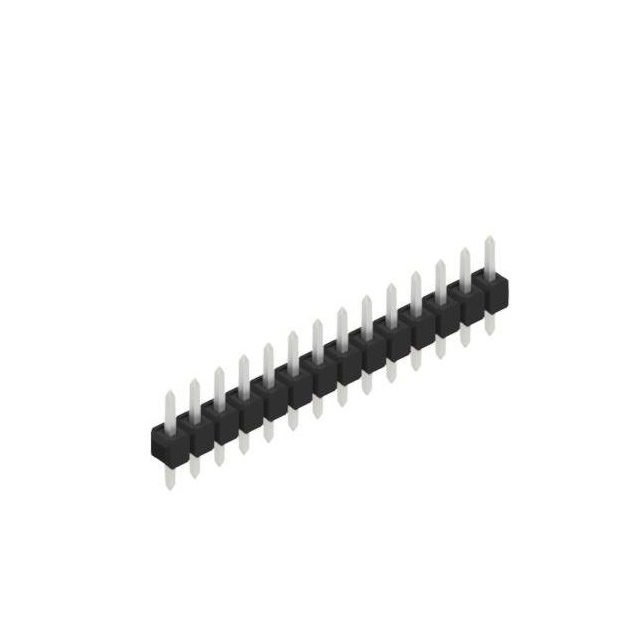

The SL 11 097 14 Z is a single-row male pin header connector manufactured by Fischer Elektronik. It features 14 contacts with a 2.54 mm pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes tin-plated copper alloy contacts and a polyamide (PA46) insulating body. Key dimensions include a contact length of 3.9 mm and an overall height of 9.7 mm. The component operates within a temperature range of -40°C to +163°C and withstands soldering temperatures of 260°C for 10 seconds.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Tin-plated contact surfaces for reliable electrical conductivity
• Polyamide insulation material ensuring thermal stability

Headers, Male Pins Applications

• General-purpose electronic interconnects
• Industrial control system wiring
• Consumer electronics assembly

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's current datasheet to confirm exact plating thickness and material specifications. Ensure the required contact count matches the 14-position configuration. Cross-reference the package type to confirm through-hole compatibility before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 2.54 mm pitch male header is required for through-hole applications. Consider the operating temperature range up to 163°C for environments requiring moderate thermal resistance. Verify that the 9.7 mm height fits within the mechanical constraints of the target enclosure design.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male pin headers from Fischer Elektronik. The series offers various contact counts and configurations for standard PCB interconnection needs. The SL 11 097 variant specifically denotes the dimensional profile and contact arrangement for this particular model line.

Headers, Male Pins Replacement Considerations

Consult Fischer Elektronik documentation for direct cross-references. Verify that any substitute maintains the 2.54 mm pitch, 14-position count, and through-hole mounting style to ensure mechanical and electrical compatibility.
