SL 11 097 15 G

Headers, Male Pins Overview

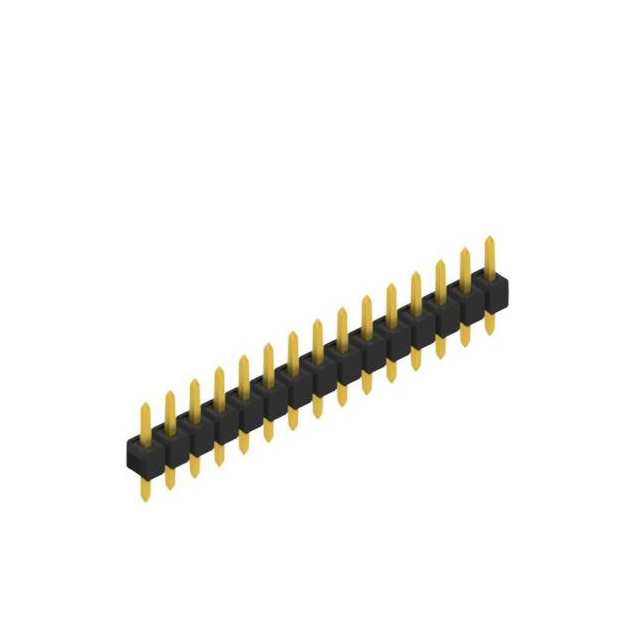

The SL 11 097 15 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row with 15 positions and a 2.54 mm (0.100 inch) contact spacing. The connector utilizes through-hole termination for PCB mounting. Contact materials consist of copper alloy with tin plating, providing a contact thickness of 4.00 µm. Insulation is made from polyamide (PA46).

Headers, Male Pins Feature Summary

• Single-row male pin header design for reliable PCB interconnection.
• Through-hole mounting method ensures secure mechanical attachment to the circuit board.
• Tin-plated copper contacts offer corrosion resistance and stable electrical performance.

Headers, Male Pins Applications

• General-purpose PCB signal and power distribution.
• Interfacing between daughter boards and main logic boards.
• Prototype development and testing setups requiring modular connectivity.

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix against the manufacturer's current datasheet to confirm exact plating specifications and insulation material grades. Ensure compatibility with mating connectors regarding contact geometry and pitch dimensions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a 15-position single-row header with 2.54 mm pitch is required. Consider the through-hole mounting style and PA46 insulation material properties for thermal stability. Confirm that the tin-plated contact finish meets the environmental and durability requirements of the target application.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of male headers from Fischer Elektronik. The series offers various contact counts ranging from one to thirty-six positions. These connectors are designed for standard PCB connection systems, providing consistent spacing and robust mechanical integrity for electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 15-position count, 2.54 mm pitch, and single-row configuration. Verify that alternative components support through-hole mounting and utilize compatible contact materials and insulation types to ensure functional interchangeability.
