SL 11 097 15 S

Headers, Male Pins Overview

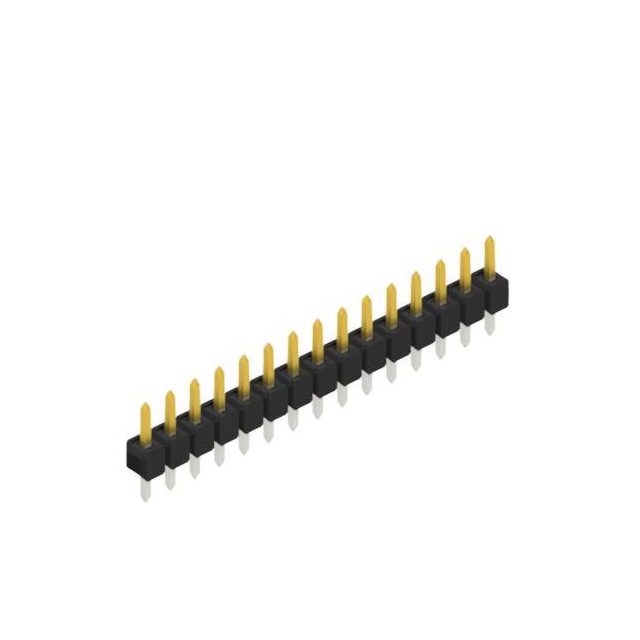

The Fischer Elektronik SL 11 097 15 S is a single-row male pin header connector designed for through-hole mounting. It features 15 contacts with a 2.54 mm (0.100 inch) pitch. The contact surfaces are finished with nickel and tin plating, providing reliable electrical connections. The connector utilizes polyamide insulation material rated for high-temperature soldering processes at 260°C for 10 seconds. Operating temperature range extends from -40°C to +163°C, ensuring stability in demanding environments.

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment
• Nickel and tin plated contacts for corrosion resistance
• Polyamide insulation supporting high thermal stability

Headers, Male Pins Applications

• Industrial control panel interconnections
• Test and measurement equipment signal routing
• Consumer electronics board-to-board connections

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'S' corresponds to the required nickel-tin contact finish as documented in the official Fischer Elektronik datasheet. Confirm that the 15-position count matches the design requirements. Ensure the through-hole footprint aligns with the manufacturer's technical drawing dimensions before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with standard 2.54 mm spacing is required. The nickel-tin finish offers a balance of conductivity and environmental protection suitable for general-purpose applications. Consider the operating temperature range of -40°C to +163°C against the system's thermal profile to ensure long-term reliability under load.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik connectors, which are characterized by their robust construction and standardized pin spacing. The series includes various contact counts and finishing options to accommodate different circuit density and environmental needs within electronic assemblies.

Headers, Male Pins Replacement Considerations

Direct substitutes must match the 2.54 mm pitch, 15 positions, and through-hole mounting style. Verify that any alternative component supports the same 260°C soldering tolerance and operates within the -40°C to +163°C temperature range to maintain system integrity.
