SL 11 097 16 G

Headers, Male Pins Overview

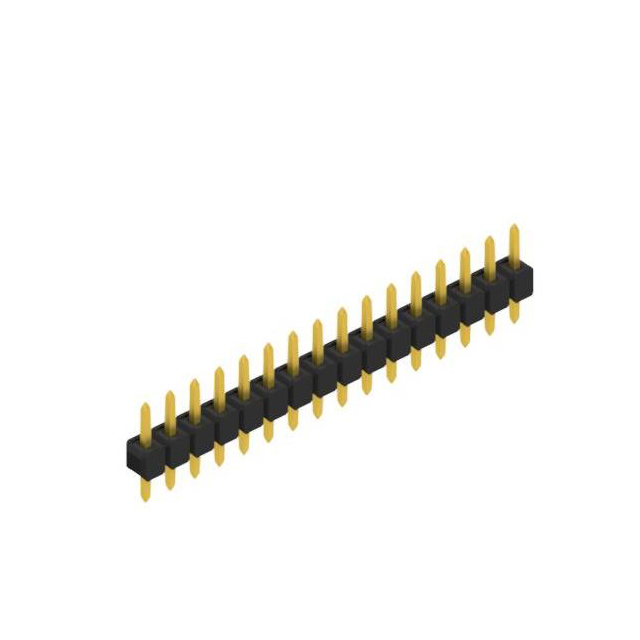

The SL 11 097 16 G is a male pin header connector manufactured by Fischer Elektronik, designed for through-hole mounting on printed circuit boards. It features a single row with 16 positions and a standard 2.54 mm (0.100 inch) pitch. The contacts are constructed from copper tin with a gold plating finish on the post to ensure reliable conductivity. This component operates within a temperature range of -40°C to +163°C and supports a nominal current of 3 A at 250 V.

Headers, Male Pins Feature Summary

• Precision-engineered compact design suitable for space-constrained PCB layouts
• Gold-plated contact posts provide durable and low-resistance electrical connections
• Polyamide insulation material ensures stability across a wide operating temperature range

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections
• Industrial control board signal routing
• Consumer electronics assembly requiring reliable through-hole headers

Headers, Male Pins Procurement Notes

Verify the specific part number SL 11 097 16 G against official Fischer Elektronik documentation to confirm contact finish and pin count. Ensure compatibility with mating sockets regarding pitch and height. Check RoHS compliance status if required by your manufacturing standards. Confirm that the gold plating specification matches your corrosion resistance needs.

Headers, Male Pins Selection Notes

Select this component when a 16-position male header with 2.54 mm pitch is required for through-hole applications. Consider the 3 A current rating and -40°C to +163°C temperature range for environmental suitability. The gold-plated contacts are ideal for applications demanding high reliability and low contact resistance over repeated mating cycles compared to tin-only finishes.

Headers, Male Pins Part Context

This component belongs to the SL 11 series of pin headers from Fischer Elektronik, which are characterized by their robust construction and precise dimensional tolerances. The series offers various pin counts and contact finishes to suit different electronic assembly requirements. The SL 11 097 variant specifically denotes the physical dimensions and configuration within this standardized product line.

Headers, Male Pins Replacement Considerations

SL 11 097 16 Z is an alternative designation noted in related product listings, potentially indicating a different contact finish such as tin instead of gold. Verify the exact contact material and plating thickness before substitution to ensure electrical performance consistency.
