SL 11 097 16 S

Headers, Male Pins Overview

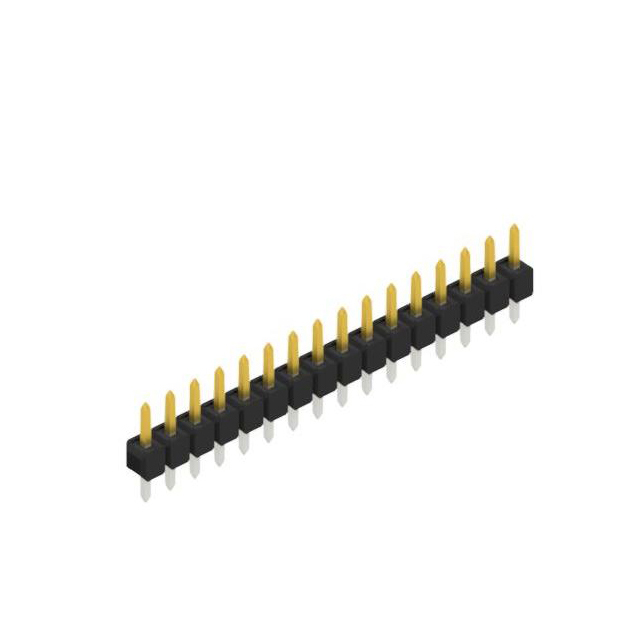

The SL 11 097 16 S is a male header connector from Fischer Elektronik, designed for through-hole mounting. It features a single row with 16 positions and a standard 2.54 mm (0.100 inch) pitch. The contacts are constructed from copper-tin alloy with a tin-plated surface finish. Key dimensional specifications include an overall contact length of 11.20 mm, a mating contact length of 5.40 mm, and a pin length of 3.00 mm. The insulator height is 2.80 mm, and the component utilizes square-shaped pins made from polyamide (PA46).

Headers, Male Pins Feature Summary

• Through-hole mounting configuration for secure PCB attachment.
• Single-row design accommodating 16 male pins.
• Tin-plated copper-tin alloy contacts for reliable conductivity.

Headers, Male Pins Applications

• General-purpose electronic circuit interconnections.
• Signal transmission in consumer electronics assemblies.
• Industrial control board connections.

Headers, Male Pins Procurement Notes

Verify the specific suffix 'S' against the manufacturer's official datasheet to confirm the exact plating thickness and material composition, as variations exist within the SL 11 097 series. Ensure the required contact count matches the 16-position specification. Confirm that the through-hole footprint aligns with the PCB layout requirements before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row, 16-pin male header with a 2.54 mm pitch is required. The tin-plated finish offers cost-effective conductivity suitable for general applications. Consider alternative suffixes if gold plating or different contact lengths are necessary for specific environmental or performance constraints.

Headers, Male Pins Part Context

This part belongs to the SL 11 097 series of male headers produced by Fischer Elektronik. The series provides various configurations differing primarily in the number of positions and contact surface finishes. This specific model represents a mid-range option within the series, offering a balance of connectivity density and standard mechanical dimensions for common PCB applications.

Headers, Male Pins Replacement Considerations
