SL 11 097 16 Z

Headers, Male Pins Overview

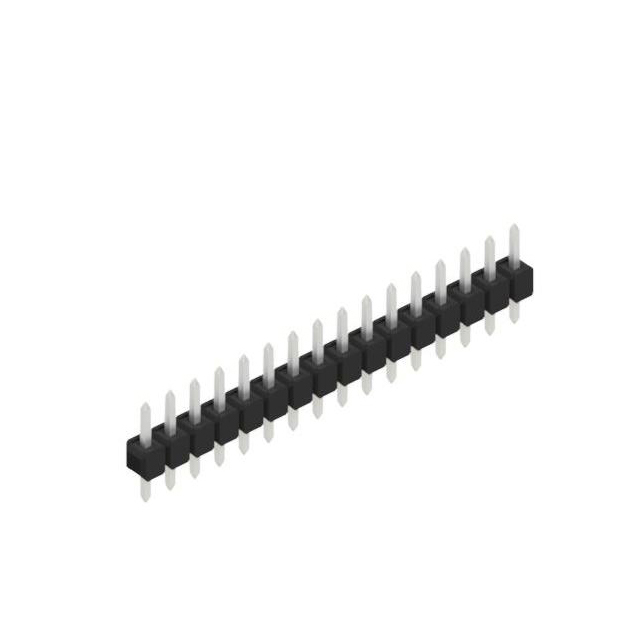

The SL 11 097 16 Z is a male pin header connector from Fischer Elektronik, designed for PCB mounting. It features a single row with 16 contacts and a 2.54 mm (0.100 inch) pitch. The connector utilizes tin-plated bronze contacts and black polyamide insulation rated UL94 V-0. It supports an operating temperature range of -40°C to 163°C, with a current rating of 3A and a voltage rating of 250VAC.

Headers, Male Pins Feature Summary

• Single-row male pin configuration for standard board-to-board or cable connections
• Tin-plated bronze contact material ensuring reliable conductivity
• Black polyamide insulation housing providing thermal stability and flame resistance

Headers, Male Pins Applications

• General-purpose electronic assemblies requiring secure interconnects
• Industrial control systems operating within specified thermal limits
• Consumer electronics utilizing standard 2.54mm spacing layouts

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix 'Z' against the manufacturer's official datasheet to confirm plating thickness and packaging details. Ensure compatibility with mating female headers regarding pitch and contact geometry. Confirm that the UL94 V-0 rating meets the safety requirements of the target application environment.

Headers, Male Pins Selection Notes

Select this component when a single-row, through-hole male header is required for 16-position connections. The 2.54 mm pitch is standard for many legacy and modern designs. Consider the 3A current rating and 250VAC voltage limit to ensure electrical safety margins are sufficient for the circuit load.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of PCB connectors manufactured by Fischer Elektronik. The series offers various contact counts and configurations, including SMD and through-hole options. The SL 11 097 variant specifically denotes a compact form factor suitable for space-constrained applications while maintaining robust mechanical and electrical performance standards.

Headers, Male Pins Replacement Considerations

Compatible substitutes include other 16-position, 2.54 mm pitch male headers from manufacturers such as Samtec or Molex, provided they match the pin dimensions and insulation height. Verify that alternative parts meet the same UL94 V-0 flammability rating and thermal endurance specifications.
