SL 11 097 17 G

Headers, Male Pins Overview

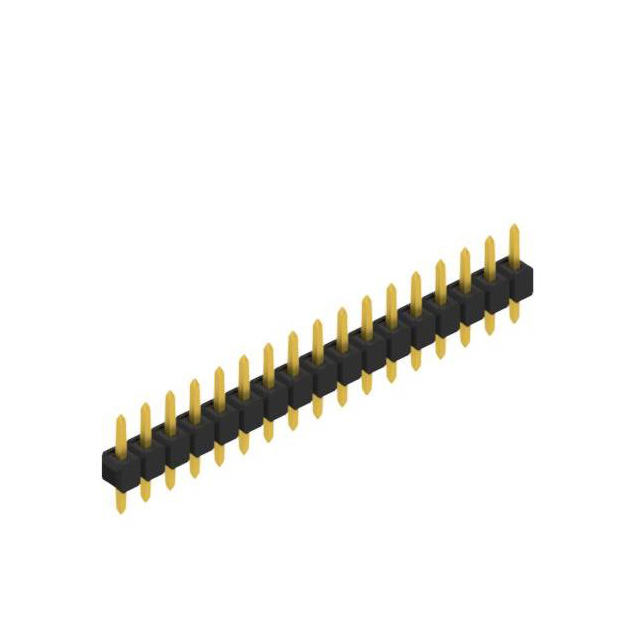

The SL 11 097 17 G is a male pin header connector manufactured by Fischer Elektronik. It features a single row of 17 contacts with a 2.54 mm (0.100 inch) pitch. Designed for through-hole mounting, the component utilizes copper-tin contact material with tin plating. The nominal current rating is 3 A at a nominal voltage of 250 V. The unit has a standard version configuration with a volume resistance of ≤5 mΩ.

Headers, Male Pins Feature Summary

• Through-hole mounting design for secure PCB attachment
• Male pin configuration for mating with socket connectors
• Tin-plated copper-tin contacts ensuring reliable conductivity

Headers, Male Pins Applications

• General electronic circuit interconnections
• Prototype board development
• Industrial control panel wiring

Headers, Male Pins Procurement Notes

Verify the specific ordering suffix and contact count against official Fischer Elektronik documentation to ensure compatibility with target PCB footprints. Confirm that the tin surface finish meets the required corrosion resistance standards for the intended operating environment. Cross-reference the mechanical dimensions with assembly constraints before finalizing procurement orders.

Headers, Male Pins Selection Notes

Select this component when a single-row male header with a 2.54 mm pitch is required for through-hole applications. Ensure the 3 A current rating and 250 V voltage limit align with the circuit specifications. Consider the physical dimensions of 9.7 mm length and 3.9 mm height for spatial clearance within the enclosure design.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of precision-engineered pin strips from Fischer Elektronik. The series offers various contact counts and dimensional variations while maintaining consistent electrical characteristics. The SL 11 097 variant specifically denotes a standard version with defined mechanical tolerances suitable for general-purpose connectivity tasks in electronic assemblies.

Headers, Male Pins Replacement Considerations

Consult official Fischer Elektronik catalogs for direct substitutes with identical pitch and contact count. Verify mechanical footprint compatibility before replacing with generic equivalents. Ensure alternative components meet the same 3 A current and 250 V voltage ratings.
