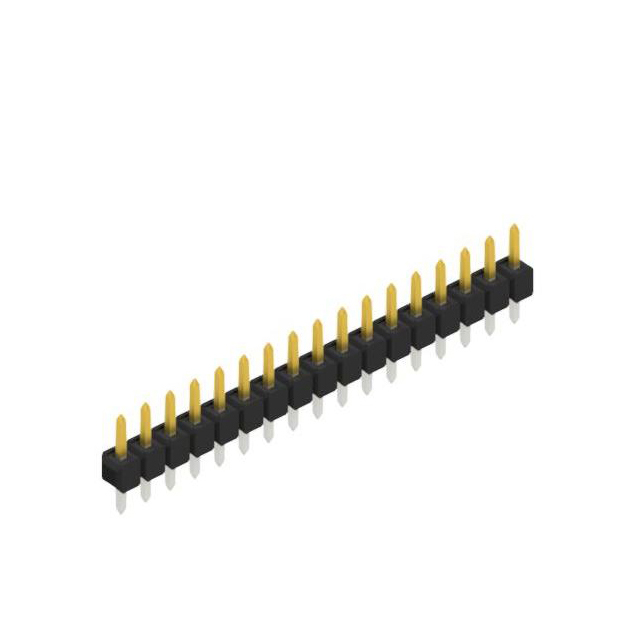

SL 11 097 17 S

Headers, Male Pins Overview

The SL 11 097 17 S is a single-row male pin header manufactured by Fischer Elektronik. It features 17 contacts with a 2.54 mm (0.100 inch) pitch, designed for through-hole mounting on printed circuit boards. The connector utilizes copper-tin contact material with a tin finish on the post. Insulation is provided by glass-filled polyamide (PA46/nylon 4/6). The component supports an operating temperature range of -40°C to +163°C and withstands reflow soldering at 260°C for 10 seconds. It serves as a board-to-board or wire-to-board interconnect solution.

Headers, Male Pins Feature Summary

• Through-hole straight pin header configuration for reliable PCB mounting
• Glass-filled polyamide insulation material ensuring thermal stability
• Tin-plated copper-tin contacts for corrosion resistance
• Standard version compatible with 2.54 mm grid systems

Headers, Male Pins Applications

• Board-to-board interconnections in electronic assemblies
• Wire-to-board connections for harness integration
• General-purpose signal routing on PCBs
• Industrial control unit interface modules

Headers, Male Pins Procurement Notes

Verify that the specific part number matches the required contact count and pitch before ordering. Confirm that the tin contact finish aligns with your solderability requirements. Ensure the glass-filled PA46 insulation rating meets the thermal constraints of your assembly process. Check that the through-hole straight form factor fits within your mechanical enclosure dimensions. Validate compatibility with standard 2.54 mm mating connectors.

Headers, Male Pins Selection Notes

Select this component when a single-row, 17-position male header is required for through-hole applications. The 2.54 mm pitch ensures broad compatibility with standard PCB layouts. The glass-filled polyamide insulation offers superior heat resistance compared to standard nylon variants. Consider the nominal current rating and voltage specifications against your circuit demands. Ensure the straight orientation suits your board stacking or wiring needs.

Headers, Male Pins Part Context

This part belongs to the SL 11 series of Fischer Elektronik headers. The series includes various configurations with different contact counts and finishes. Similar models include the SL 11 097 16 G and SL 11 097 5 Z, which share the same series design but differ in contact plating and quantity. The SL 11 124 36 S represents another variant within the broader product line.

Headers, Male Pins Replacement Considerations

Direct substitutes may include other Fischer Elektronik headers from the SL 11 series with identical 17-contact counts and 2.54 mm pitch. Verify mechanical dimensions and insulation material properties before substitution. Alternative manufacturers offering 17-pin, 2.54 mm through-hole headers may be considered if electrical ratings match.
